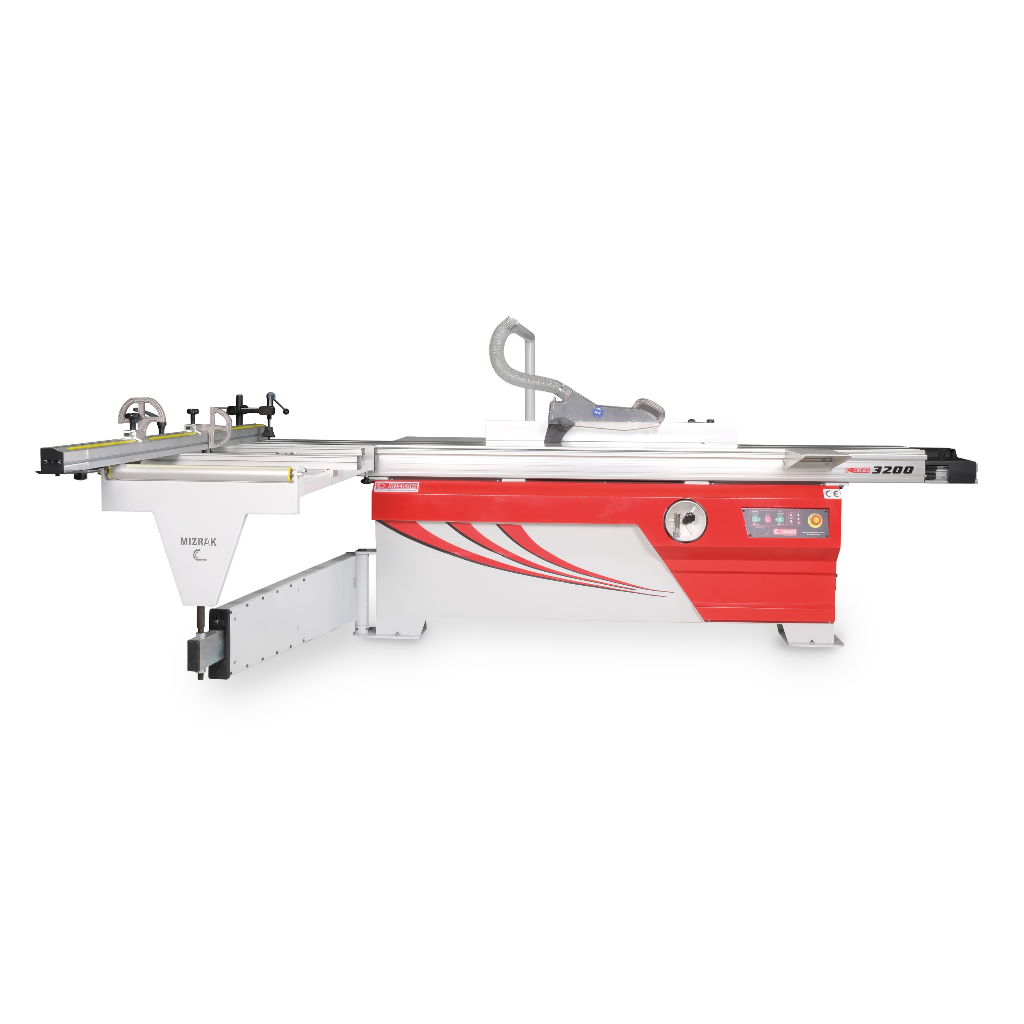

Mizrak MZK 3200 PRESTIJ Sliding Table Panel Saw

1 / 4

A 3200 mm stroke takes a standard sheet lengthwise in one pass, and that is what separates the MZK 3200 PRESTIJ from the 2800 mm MZK 2800 PRESTIJ below it and the 3800 mm model above. Manual tilt and height, 380 mm aluminium carriage, 4 kW saw motor, 0.75 kW scorer, 700-780-790 kg by build.

ძრავის სიმძლავრე: 4 kW
მაგიდის სიგრძე: 3200 mm
წონა: 700 - 780 - 790 kg

ახალი
შეკვეთით

ფასი ფასი მოთხოვნით

Price on the MZK 3200 PRESTIJ is driven by which build variant is specified - the supplier quotes 700, 780 or 790 kg - together with the blade and scoring tooling package, the extraction unit, and delivery and installation.

ფასის მოთხოვნა

WhatsApp +995 599 88 74 04

ირაკლი გაყიდვების მენეჯერი

კონფიგურაცია თქვენს ძაბვასა და ზომებზე
მიწოდება, მონტაჟი და გაშვება ადგილზე
ქარხნული გარანტია და სათადარიგო ნაწილები

What the MZK 3200 PRESTIJ does

The MZK 3200 PRESTIJ is the standard-stroke workhorse of the Mizrak panel saw range, sizing sheet material and squaring solid stock over 3200 mm of carriage travel. Main blades from Ø250 x 30 mm to Ø300 x 30 mm turn at 4750 to 5250 rpm on a 4 kW motor, cutting 80 mm deep at 90 degrees and 65 mm at 45 degrees. Ahead of the main blade, a Ø125 x 20 mm scorer at 7250 rpm on its own 0.75 kW motor opens the surface so melamine and veneer break out cleanly on the underside. Crosscuts are set on a 1950 mm fence with stops over a 0 to 3000 mm range and ±45 degree adjustment.

Who the MZK 3200 PRESTIJ suits

The MZK 3200 PRESTIJ fits the workshop buying its first serious format saw, or replacing a worn one, where the daily work is cabinet carcasses, wardrobe parts and shop fittings cut square. A 3200 mm stroke covers standard board without the floor-space penalty of the 3800 mm machines, and the 8-shaft carriage system keeps the 380 mm aluminium beam moving smoothly under load.

How the MZK 3200 PRESTIJ compares in the range

Against the MZK 3200 SPECIAL, which has the same stroke, the MZK 3200 PRESTIJ gives up the 420 mm linear-guided carriage and the actuator-driven 45 to 90 degree tilt; both tilt and blade height on the MZK 3200 PRESTIJ are hand-set. Against the shorter MZK 2800 PRESTIJ, the machines are otherwise identical and the difference is 400 mm of extra travel. The supplier records the net weight of the MZK 3200 PRESTIJ as 700, 780 or 790 kg depending on the configuration ordered.

What is included

The MZK 3200 PRESTIJ is supplied with a 550 x 910 mm main table, a 380 x 540 mm side extension, a 785 x 970 mm rear extension and a 1200 mm rip fence on the main table. Overall height is 1400 mm, working noise is quoted at 80 dB and the extraction connection sits 845 mm from the floor.

ძირითადი მახასიათებლები

3200 mm sliding table with 3200 mm of travel - the standard capacity for cabinet board
380 mm aluminium carriage on an 8-shaft smooth movement system
4 kW saw motor running Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm
0.75 kW scoring motor with Ø125 x 20 mm blade at 7250 rpm for chip-free coated board
80 mm depth of cut at 90 degrees and 65 mm at 45 degrees
1950 mm crosscut fence with 0-3000 mm stop range and ±45 degree setting
Machined body, quoted at 700, 780 or 790 kg depending on configuration

ტექნიკური მახასიათებლები

Saw Blade Diameter (Min - Max, Outer/Inner): Ø250 x 30 mm - Ø300 x 30 mm
Max. Cutting Depth (at 90°): 80 mm
Max. Cutting Depth (at 45°): 65 mm
Saw Blade Speed: 4750 - 5250 RPM
Saw Motor Power: 4 kW
Scoring Saw Blade Diameter (Outer/Inner): Ø125 x 20 mm
Scoring Saw Speed: 7250 RPM
Scoring Saw Motor Power: 0.75 kW
Noise Level: 80 dB
Main Table Dimensions: 550 x 910 mm
Side Extension Table Dimensions: 380 x 540 mm
Rear Extension Table Dimensions: 785 x 970 mm
Rip Fence Length (Main Table): 1200 mm
Sliding Table Length: 3200 mm
Sliding Table Travel Distance: 3200 mm
Sliding Table Fence Angle (Right-Left): 0-45° both directions
Aluminum Carriage Width: 380 mm
Sliding Table Fence Length: 1950 mm
Sliding Table Fence Angle (Right-Left): ±45°
Sliding Fence Stop Range: 0 - 3000 mm
Dust Extraction Port Height from Floor: 845 mm
Machine Height: 1400 mm
Net Weight: 700 - 780 - 790 kg (varies by model)

უპირატესობები

3200 mm stroke covers standard cabinet board while needing less floor length than the 3800 mm models
Scoring unit with its own 0.75 kW motor is standard, not an option
Simple, hand-adjusted mechanism with fewer powered components to service

გასათვალისწინებელი

Manual 45-90 degree tilt and manual blade height slow down mixed-angle work
Net weight is quoted as a range (700/780/790 kg), so transport and lifting must be confirmed per build
Extractor, tooling and electrical connection details are all outside the supplied specification

ხშირად დასმული კითხვები

What power supply does the MZK 3200 PRESTIJ require?

The MZK 3200 PRESTIJ has a 4 kW saw motor and a 0.75 kW scoring motor, but the supplier's technical table for the MZK 3200 PRESTIJ does not publish a supply voltage or total connected load. Confirm the electrical requirement with us before the machine position is wired.

Why does the MZK 3200 PRESTIJ have three different weights listed?

The supplier quotes the net weight of the MZK 3200 PRESTIJ as 700, 780 or 790 kg because the model is built in more than one configuration. Ask us to confirm the weight of the exact MZK 3200 PRESTIJ build being quoted before arranging transport or lifting.

How thick a board will the MZK 3200 PRESTIJ cut?

The MZK 3200 PRESTIJ cuts to 80 mm with the blade square and 65 mm with the blade tilted to 45 degrees. Material thicker than 80 mm is beyond the single-pass capacity of the MZK 3200 PRESTIJ.

What blades does the MZK 3200 PRESTIJ take?

The MZK 3200 PRESTIJ accepts main blades from Ø250 x 30 mm to Ø300 x 30 mm and a Ø125 x 20 mm scoring blade. The supplier does not state which blades are included with the MZK 3200 PRESTIJ, so confirm the tooling package when ordering.

Does the MZK 3200 PRESTIJ need a separate dust extractor?

Yes. The MZK 3200 PRESTIJ has an extraction connection 845 mm above the floor but no extractor is part of the machine. The MZK 3200 PRESTIJ must be connected to a workshop chip and dust extraction system before use.

What does the MZK 3200 PRESTIJ not do?

The MZK 3200 PRESTIJ is a manually fed sliding table saw and does not run cutting programmes, does not feed or square panels automatically, and does not bore or edge-band. Powered blade tilt is also absent from the MZK 3200 PRESTIJ - that is the MZK 3200 SPECIAL.

How much does the MZK 3200 PRESTIJ cost?

The MZK 3200 PRESTIJ is priced on quotation. What moves the price of an MZK 3200 PRESTIJ is the build variant specified (the supplier publishes 700, 780 and 790 kg versions), the blade and scoring tooling package, whether a dust extractor is supplied with it, and delivery and installation. Describe your daily cutting volume and the MZK 3200 PRESTIJ will be quoted to match.

Is the MZK 3200 PRESTIJ available from stock?

The MZK 3200 PRESTIJ is a build-to-order machine, so availability of an MZK 3200 PRESTIJ is confirmed at quotation against the current production schedule rather than quoted from stock. Mention any fixed installation date when you enquire.

What is involved in installing an MZK 3200 PRESTIJ?

Installing an MZK 3200 PRESTIJ means siting and levelling the machine with clear floor for the 3200 mm carriage stroke, confirming the actual build weight for rigging, making a three-phase connection for the 4 kW saw and 0.75 kW scoring motors, and connecting extraction to the port 845 mm above the floor. Installation of the MZK 3200 PRESTIJ is quoted with the machine.

What consumables should be budgeted with the MZK 3200 PRESTIJ?

Budget separately for main blades between 250 x 30 mm and 300 x 30 mm, 125 x 20 mm scoring blades, and dust extraction, none of which are listed in the supplier specification for the MZK 3200 PRESTIJ. On an MZK 3200 PRESTIJ cutting melamine daily, scoring blade sharpening is the consumable that most affects finish quality.
