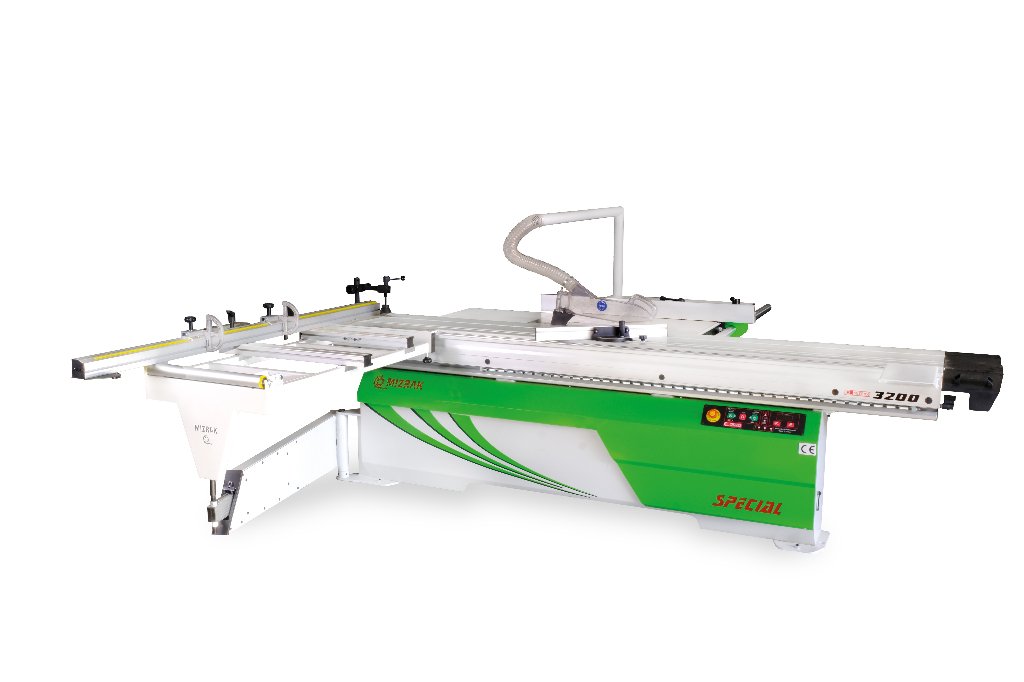

Mizrak MZK 3200 SPECIAL Sliding Table Panel Saw
MZK 3200 SPECIAL
Where floor length is tight, the MZK 3200 SPECIAL puts the full SPECIAL specification on a 3200 mm sliding table rather than the 3800 mm stroke of the MZK 3800 SPECIAL: 420 mm aluminium carriage on linear guides, 4 kW saw motor, 0.75 kW scoring unit, actuator-driven 45-90 degree tilt, 760 kg net.
Price on the MZK 3200 SPECIAL is driven by the choice of the 3200 mm stroke over the longer 3800 mm SPECIAL, the tooling package of main and scoring blades, the extraction plant specified, and delivery and installation to the workshop.
ფასის მოთხოვნაWhat the MZK 3200 SPECIAL does
The MZK 3200 SPECIAL cuts sheet material to size and squares solid timber with a 3200 mm carriage stroke, the length most cabinet shops actually need for standard board. Blades from Ø250 x 30 mm to Ø300 x 30 mm run at 4750 to 5250 rpm on a 4 kW motor, giving 80 mm of cut at 90 degrees and 65 mm at 45 degrees. A Ø125 x 20 mm scoring blade spinning at 7250 rpm on its own 0.75 kW motor cuts the surface line ahead of the main blade, which is what protects the lower face of melamine and veneered panels. Crosscuts are set on a 1950 mm sliding fence with a 0 to 3000 mm stop range and ±45 degree adjustment.
Who the MZK 3200 SPECIAL suits
The MZK 3200 SPECIAL is the right size for a furniture workshop that cuts standard board rather than oversized panels, and that changes between square and mitred cuts often enough for motorised tilt to pay for itself. The 760 kg machined body and 420 mm aluminium carriage give the mass and width to keep a large panel flat and the cut line true through a full production day.
How the MZK 3200 SPECIAL compares in the range
The MZK 3200 SPECIAL sits above the MZK 3200 PRESTIJ and below the MZK 3800 SPECIAL. Against the PRESTIJ of the same stroke, the MZK 3200 SPECIAL gains a 420 mm carriage instead of 380 mm, a linear guide system in place of the 8-shaft arrangement, and actuator-driven tilt in place of a manual angle adjustment. Against the MZK 3800 SPECIAL, the specification is identical apart from stroke, 3200 mm rather than 3800 mm, and weight, 760 kg rather than 808 kg. Vertical blade movement on the MZK 3200 SPECIAL is set by hand.
What is included
The MZK 3200 SPECIAL comes with a 550 x 910 mm main table, a 380 x 540 mm side extension, a 785 x 970 mm rear extension and a 1200 mm rip fence. Overall height is 1400 mm and the extraction port stands 845 mm from the floor.
ძირითადი მახასიათებლები
- 3200 mm sliding table with 3200 mm of carriage travel
- 420 mm aluminium carriage on a linear guide system for a wide panel support surface
- 4 kW saw motor driving Ø250 x 30 mm to Ø300 x 30 mm blades at 4750-5250 rpm
- 0.75 kW scoring unit with Ø125 x 20 mm blade at 7250 rpm for clean melamine undersides
- Actuator motor for automatic 45-90 degree tilt; manual vertical rise and fall
- 1950 mm sliding fence with 0-3000 mm stop range and ±45 degree setting
- Machined body, 760 kg net weight, 80 dB working noise level
ტექნიკური მახასიათებლები
- Saw Blade Diameter (Min - Max, Outer/Inner)
- Ø250 x 30 mm - Ø300 x 30 mm
- Max. Cutting Depth (at 90°)
- 80 mm
- Max. Cutting Depth (at 45°)
- 65 mm
- Saw Blade Speed
- 4750 - 5250 RPM
- Saw Motor Power
- 4 kW
- Scoring Saw Blade Diameter (Outer/Inner)
- Ø125 x 20 mm
- Scoring Saw Speed
- 7250 RPM
- Scoring Saw Motor Power
- 0.75 kW
- Noise Level
- 80 dB
- Main Table Dimensions
- 550 x 910 mm
- Side Extension Table Dimensions
- 380 x 540 mm
- Rear Extension Table Dimensions
- 785 x 970 mm
- Rip Fence Length (on Table)
- 1200 mm
- Sliding Table Length
- 3200 mm
- Sliding Table Travel Distance
- 3200 mm
- Sliding Table Fence Angle (Right-Left)
- 0-45° both directions
- Aluminum Carriage Width
- 420 mm
- Sliding Table Fence Length
- 1950 mm
- Sliding Table Fence Angle (Right-Left)
- ±45°
- Sliding Fence Stop Range
- 0 - 3000 mm
- Dust Extraction Port Height from Floor
- 845 mm
- Machine Height
- 1400 mm
- Net Weight
- 760 kg
უპირატესობები
- Motorised 45-90 degree tilt makes repeated angle changes fast and repeatable
- 420 mm linear-guided aluminium carriage on a 760 kg machined body resists deflection under heavy panels
- Independent 0.75 kW scoring motor produces finished edges on coated board without a second pass
გასათვალისწინებელი
- 3200 mm of carriage travel still needs a long clear aisle either side of the machine
- Blade height is adjusted manually, so only the tilt axis is powered
- Extraction equipment, tooling and supply voltage are not covered by the supplier specification and must be sorted separately
