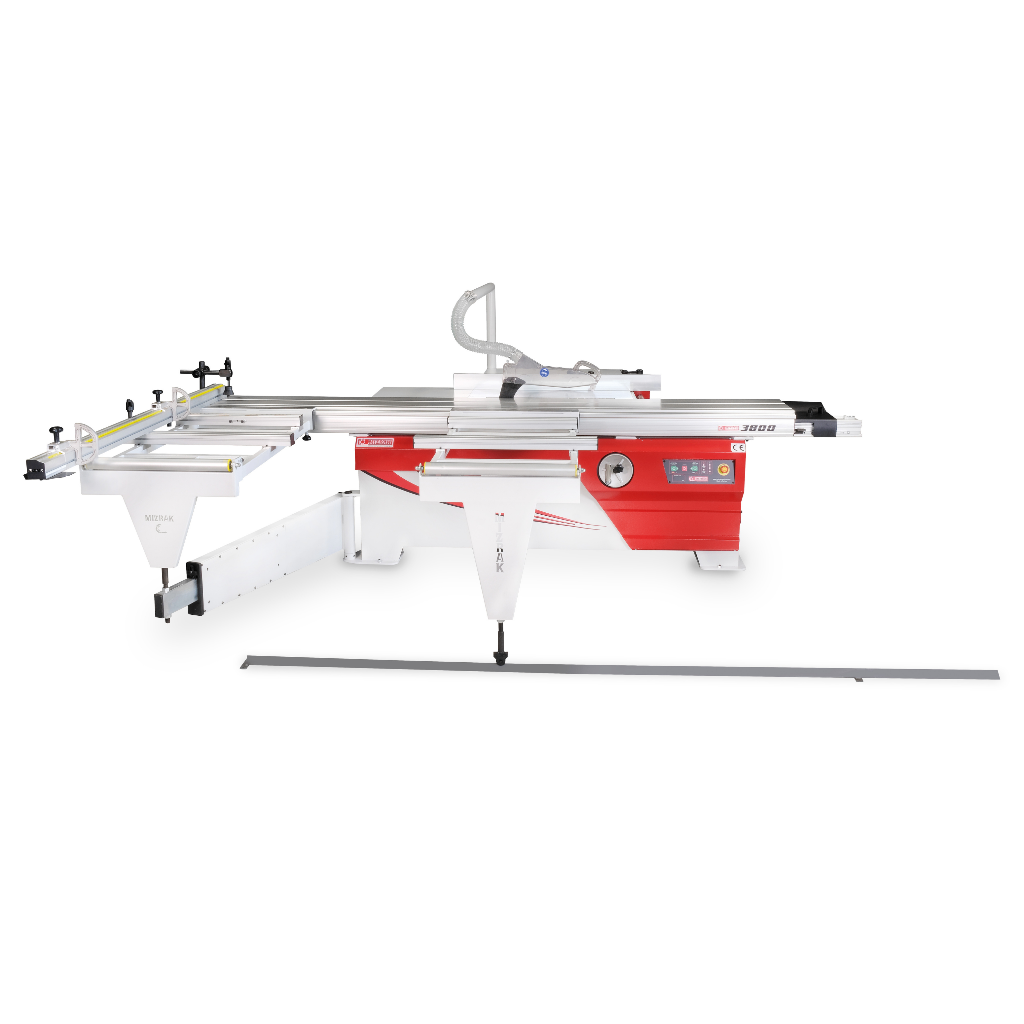

Mizrak MZK 3800 PRESTIJ Sliding Table Panel Saw

1 / 4

Longest stroke in the hand-adjusted PRESTIJ line, the MZK 3800 PRESTIJ carries a full sheet past the blade on 3800 mm of travel and adds a profile support table for long, narrow work. Specification is a 380 mm aluminium carriage on 8 shafts, 4 kW saw motor, 0.75 kW scoring motor and 740 kg net.

ძრავის სიმძლავრე: 4 kW
მაგიდის სიგრძე: 3800 mm
მაგიდის ზომა: 550 x 910 mm
წონა: 740 kg

ახალი
შეკვეთით

ფასი ფასი მოთხოვნით

Price on the MZK 3800 PRESTIJ is moved chiefly by the 3800 mm table length over the shorter PRESTIJ models, the blade and scoring tooling package, the extraction unit specified, and transport and installation of a 740 kg machine with a long carriage.

ფასის მოთხოვნა

WhatsApp +995 599 88 74 04

ირაკლი გაყიდვების მენეჯერი

კონფიგურაცია თქვენს ძაბვასა და ზომებზე
მიწოდება, მონტაჟი და გაშვება ადგილზე
ქარხნული გარანტია და სათადარიგო ნაწილები

What the MZK 3800 PRESTIJ does

The MZK 3800 PRESTIJ is the long-stroke machine for shops that regularly cut full-length sheets. The carriage travels 3800 mm, enough to take a large panel completely through the blade without repositioning, and the upper carriage fence measures 1950 mm with stops adjustable over 0 to 3000 mm. Main blades from Ø250 x 30 mm to Ø300 x 30 mm run at 4750 to 5250 rpm behind a 4 kW motor for 80 mm of cut at 90 degrees and 65 mm at 45 degrees, while a 0.75 kW scoring unit spinning a Ø125 x 20 mm blade at 7250 rpm keeps coated faces from tearing out.

Who the MZK 3800 PRESTIJ suits

The MZK 3800 PRESTIJ suits a workshop whose limiting factor is panel length rather than cutting sophistication. Furniture makers, door assemblers and shopfitters who break down oversized board but set angles only occasionally get the long stroke without paying for powered tilt. The 8-shaft movement system on the 380 mm aluminium carriage is designed for smooth travel across that long run, and the machined body brings the MZK 3800 PRESTIJ to 740 kg.

How the MZK 3800 PRESTIJ differs from the SPECIAL and the shorter PRESTIJ models

The MZK 3800 PRESTIJ trades the MZK 3800 SPECIAL’s 420 mm linear-guided carriage and actuator-driven tilt for a 380 mm 8-shaft carriage and hand-set 45 to 90 degree adjustment, which is also why it is 68 kg lighter at 740 kg. Compared with the MZK 3200 PRESTIJ, the MZK 3800 PRESTIJ is mechanically the same machine with 600 mm more stroke: same 4 kW motor, same scoring unit, same 550 x 910 mm main table and same 80 mm depth of cut.

What is included

The MZK 3800 PRESTIJ ships with a 550 x 910 mm main table, a 380 x 540 mm side extension table, a 785 x 970 mm rear extension table, a 1200 mm rip fence and an additional profile support table. Machine height is 1400 mm and the extraction connection sits 845 mm above the floor.

ძირითადი მახასიათებლები

3800 mm sliding table length with a matching 3800 mm carriage travel
380 mm aluminium carriage running on an 8-shaft smooth movement system
4 kW saw motor at 4750-5250 rpm taking Ø250 x 30 mm to Ø300 x 30 mm blades
0.75 kW scoring motor with a Ø125 x 20 mm blade at 7250 rpm
80 mm cutting depth at 90 degrees, 65 mm at 45 degrees
1950 mm upper carriage fence with 0-3000 mm stop range and ±45 degree angle
Additional profile support table included; 740 kg machined body

ტექნიკური მახასიათებლები

Saw Blade Diameter (Min - Max, Outer/Inner): Ø250 x 30 mm - Ø300 x 30 mm
Max. Cutting Depth (90°): 80 mm
Max. Cutting Depth (45°): 65 mm
Saw Blade Speed: 4750 - 5250 rpm
Saw Motor Power: 4 kW
Scoring Blade Diameter (Outer/Inner): Ø125 x 20 mm
Scoring Blade Speed: 7250 rpm
Scoring Motor Power: 0.75 kW
Sound Level: 80 dB
Table Size (Main Table): 550 x 910 mm
Side Extension Table Size: 380 x 540 mm
Rear Extension Table Size: 785 x 970 mm
Upper Table Fence Length: 1200 mm
Sliding Table Length: 3800 mm
Sliding Table Travel: 3800 mm
Sliding Table Fence Angle (Right-Left): 0-45° right and left
Aluminum Carriage Width: 380 mm
Upper Carriage Fence Length: 1950 mm
Upper Carriage Fence Angle (Right-Left): ±45°
Upper Carriage Fence Stop Length: 0 - 3000 mm
Dust Extraction Pipe Height from Floor: 845 mm
Machine Height: 1400 mm
Net Weight: 740 kg

უპირატესობები

Full 3800 mm stroke at the lower PRESTIJ specification - the cheapest way into long-panel cutting in this range
0.75 kW scoring unit fitted as standard, so melamine cuts finish clean without a scoring retrofit
Includes an additional profile support table for handling long or narrow workpieces

გასათვალისწინებელი

Both tilt and blade height are hand-adjusted, which slows shops that change angle frequently
380 mm carriage is 40 mm narrower than the SPECIAL models, giving less panel support width
Largest floor-space demand in the PRESTIJ line and no extractor supplied

ხშირად დასმული კითხვები

What supply does the MZK 3800 PRESTIJ need?

The MZK 3800 PRESTIJ runs a 4 kW saw motor plus a 0.75 kW scoring motor, but the supplier's published table for the MZK 3800 PRESTIJ gives no supply voltage or total connected load. Confirm the electrical specification with us before wiring the machine position.

How large a panel can the MZK 3800 PRESTIJ handle?

The MZK 3800 PRESTIJ has 3800 mm of sliding table travel and a crosscut fence with stops across 0 to 3000 mm, which is the practical guide to the panel sizes the MZK 3800 PRESTIJ will size in one pass. Maximum thickness is 80 mm at 90 degrees.

Is the tilt on the MZK 3800 PRESTIJ motorised?

No. On the MZK 3800 PRESTIJ both the 45 to 90 degree tilt and the vertical rise and fall of the blade are set by hand. Motorised tilt is the feature that distinguishes the MZK 3800 SPECIAL from the MZK 3800 PRESTIJ.

What tooling does the MZK 3800 PRESTIJ need?

The MZK 3800 PRESTIJ takes main blades between Ø250 x 30 mm and Ø300 x 30 mm and a Ø125 x 20 mm scoring blade. The supplier data for the MZK 3800 PRESTIJ does not state which blades are supplied with the machine, so agree the tooling package at the time of order.

How much space does the MZK 3800 PRESTIJ need in the workshop?

The MZK 3800 PRESTIJ needs a clear run for the full 3800 mm carriage stroke at both ends of the machine, plus loading space on the carriage side. Overall machine height is 1400 mm and the extraction port is 845 mm from the floor; the supplier does not publish an overall footprint for the MZK 3800 PRESTIJ.

What does the MZK 3800 PRESTIJ not do?

The MZK 3800 PRESTIJ does not perform automated or programmed cutting, does not feed panels by itself, and does not include a dust extractor. The MZK 3800 PRESTIJ is a manually operated sliding table saw and needs an operator at the carriage for every cut.

How much does the MZK 3800 PRESTIJ cost?

The MZK 3800 PRESTIJ is supplied on quotation. The price of an MZK 3800 PRESTIJ is set by the 3800 mm table length you are choosing over the shorter PRESTIJ models, the blade and scoring tooling package, whether extraction is supplied, and delivery and installation. Send your panel sizes and the MZK 3800 PRESTIJ will be quoted with the ancillaries.

How soon can an MZK 3800 PRESTIJ be delivered?

The MZK 3800 PRESTIJ is built to order, so delivery timing for an MZK 3800 PRESTIJ is confirmed at quotation against the current build schedule. Long-carriage machines also need transport planned, so raise any fixed date early.

What does commissioning an MZK 3800 PRESTIJ involve?

Commissioning an MZK 3800 PRESTIJ means positioning and levelling a 740 kg machine, checking carriage travel over the full 3800 mm stroke, squaring the 1950 mm fence, connecting a three-phase supply for the 4 kW and 0.75 kW motors, and ducting extraction to the 845 mm port. All of this is quoted with the MZK 3800 PRESTIJ rather than left open.

What should be budgeted for tooling on the MZK 3800 PRESTIJ?

Budget main blades from 250 x 30 mm to 300 x 30 mm, 125 x 20 mm scoring blades and a dust extractor separately from the MZK 3800 PRESTIJ, as the supplier specification for the MZK 3800 PRESTIJ lists none of them. Sharpening and blade replacement are recurring costs in daily sheet cutting.
