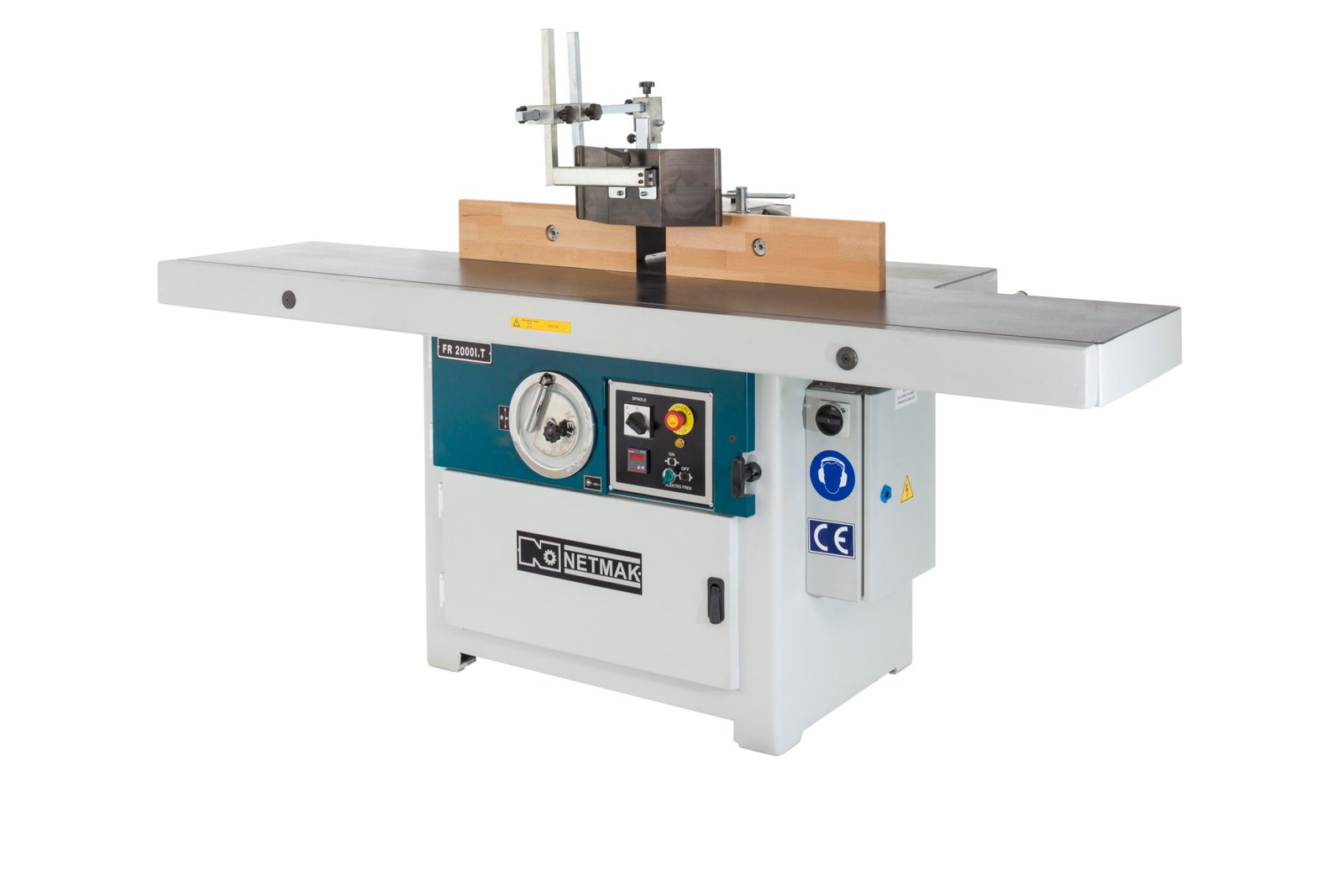

NETMAK FR 2000 I.T. Extension Table Spindle Moulder

FR 2000 İ.T. İlave Tablalı Freze Makinası

Table length is the whole argument for the NETMAK FR 2000 I.T.: 2000 x 800 mm against 1000 x 750 mm on the standard FR 2000, so a full door rail stays supported end to end. The FR 2000 I.T. weighs 615 kg and turns a 30 mm spindle with 150 mm stroke on a 5.5 kW motor with four speeds to 10,000 rpm.

ფასი მოთხოვნით

For the FR 2000 I.T. the price turns on the extension table configuration itself, the tooling package for the 30 mm spindle, a power feeder and extraction if specified, and above all delivery and rigging, since a two-metre table is awkward to move into a workshop and may need dismantled access.

ფასის მოთხოვნა

What the FR 2000 I.T. does

The FR 2000 I.T. is the long-table member of the FR 2000 spindle moulder family, and length is the whole point of it. Where the standard FR 2000 models give a 1000 x 750 mm work surface, the FR 2000 I.T. carries a 2000 x 800 mm extension table, so a two-metre door rail or a run of skirting is supported along most of its length while it passes the cutter. That support is what stops the far end of a long board dropping and lifting the cut at the trailing edge. The 30 mm spindle offers 150 mm of vertical travel with a digital readout, driven by a 5.5 kW motor at 4000, 6000, 8000 or 10,000 rpm.

Who the FR 2000 I.T. suits

The FR 2000 I.T. earns its place in a door or window workshop that machines long components as its main product rather than an occasional job. Interior door stiles and rails, window casements, architrave and skirting runs are the natural work for the FR 2000 I.T. A shop whose parts are mostly under a metre gets no benefit from the extra table and would be better served by a shorter model in the same range.

How the FR 2000 I.T. compares with its siblings

The FR 2000 I.T. shares the FR 2000 drivetrain exactly — 5.5 kW, 30 mm spindle, 14 mm collet, four speeds topping out at 10,000 rpm — but converts the carriage into length. At 850 x 1950 x 1400 mm the FR 2000 I.T. takes nearly twice the floor depth of the 850 x 1000 x 1400 mm FR 2000 S, and weighs 615 kg against 550 kg. Against the FR 2100 I.T., the FR 2000 I.T. is the smaller machine: a 2000 x 800 mm table versus 2200 x 840 mm, 5.5 kW versus 7.5 kW, and a fixed 30 mm spindle versus a 30-35 mm option.

What is supplied with the FR 2000 I.T.

The FR 2000 I.T. comes with the extension table, a curved-workpiece jig, an electromechanical spindle brake, a guard-cover safety interlock and a digital height indicator. Cutter heads, knives, a power feeder and dust extraction are ordered separately.

ძირითადი მახასიათებლები

  • 2000 x 800 mm extension table — double the length of the standard FR 2000 work surface
  • 5.5 kW / 7.5 HP motor with four spindle speeds: 4000, 6000, 8000 and 10,000 rpm
  • 30 mm spindle with 150 mm vertical stroke and a Morse No. 5 (5 MK) taper
  • 14 mm collet for router-type cutters as well as bore-mounted profile heads
  • 850 mm table height and 850 x 1950 x 1400 mm overall footprint
  • 615 kg monobloc steel construction for stability under long, heavy stock
  • Electromechanical spindle brake and guard-cover safety interlock circuit
  • Digital height indicator plus a curved-workpiece jig for template work

ტექნიკური მახასიათებლები

Product code
FR 2000 İ.T.
Machine type
Extension table spindle moulder (İlave Tablalı Freze Makinası)
Table size
2000 x 800 mm
Table type
Extension table
Table height
850 mm
Spindle diameter
30 mm
Collet
14 mm
Spindle stroke
150 mm
Spindle taper
5 MK (Morse No. 5)
Motor power
7.5 HP / 5.5 kW
Spindle speeds
4000-6000-8000-10000 rpm
Overall dimensions
850 x 1950 x 1400 mm
Net weight
615 kg
Body
Monobloc steel
Braking
Electromechanical brake system
Safety
Guard cover interlock circuit
Height display
Digital height indicator
Included jig
Curved workpiece attachment

უპირატესობები

  • 2000 x 800 mm table supports full-length door rails and skirting runs without extra stands
  • Four speeds to 10,000 rpm from the 5.5 kW motor cover both fine and heavy profile tooling
  • 615 kg of monobloc steel gives a stable base for the long overhung table

გასათვალისწინებელი

  • 1950 mm overall depth needs a dedicated wall run, plus clear space at each end for stock
  • Fixed 30 mm spindle only, so 35 mm bore tooling requires the FR 2100 I.T.
  • Long stock still needs a power feeder for consistent feed rate; none is included, and extraction is separate

ხშირად დასმული კითხვები

How long a workpiece can the FR 2000 I.T. support?
The FR 2000 I.T. has a 2000 x 800 mm extension table, so components up to roughly two metres are carried along most of their length during the pass. Longer stock can still be moulded on the FR 2000 I.T. but will need roller stands at the infeed and outfeed ends.
What power supply does the FR 2000 I.T. need?
The FR 2000 I.T. is driven by a 5.5 kW / 7.5 HP four-speed motor. NETMAK does not publish supply voltage, phase or frequency for the FR 2000 I.T., so plan for an industrial three-phase connection and confirm the exact voltage with us before ordering.
How much floor space does the FR 2000 I.T. occupy?
The FR 2000 I.T. measures 850 x 1950 x 1400 mm and weighs 615 kg — roughly twice the floor depth of the standard FR 2000 S. Position the FR 2000 I.T. so there is a clear two-metre run at both ends of the table, which in most workshops means placing it along a wall rather than in a corner.
What tooling does the FR 2000 I.T. take?
The FR 2000 I.T. accepts bore-mounted cutter heads on its 30 mm spindle and router-type cutters in its 14 mm collet, with a Morse No. 5 spindle taper. Tooling is not included with the FR 2000 I.T. and should be specified to the profiles you intend to run.
Is the FR 2000 I.T. a moulder that feeds stock automatically?
No. The FR 2000 I.T. is a spindle moulder, not a four-sided planer moulder — the operator or a separate power feeder moves the stock past a single vertical cutter. If you need all four faces profiled in one pass, the FR 2000 I.T. is the wrong machine.
Does the FR 2000 I.T. include dust extraction?
No. Dust extraction is not supplied with the FR 2000 I.T. and port sizes are not stated on the published specification. Long moulding runs generate a large chip volume, so a separate extraction unit should be budgeted alongside the FR 2000 I.T.
How much does the NETMAK FR 2000 I.T. cost?
The NETMAK FR 2000 I.T. is supplied on quotation. Price for an FR 2000 I.T. is set by the 2000 x 800 mm extension-table configuration, the tooling package for the 30 mm spindle and 14 mm collet, whether a power feeder and extraction unit are included, and delivery, rigging and commissioning. Describe the longest component to be machined and a quotation for the FR 2000 I.T. can be built around it.
How soon can an FR 2000 I.T. be delivered?
The FR 2000 I.T. is built to order at NETMAK rather than shipped from stock, so timing follows the current production slot and any tooling ordered with it. The lead time that applies to an FR 2000 I.T. is confirmed on the written quotation, and a target installation date can be checked before ordering.
What does installing an FR 2000 I.T. require on site?
Installing an FR 2000 I.T. calls for a bay long enough to take a 2000 mm table with clear run-out at both ends, a solid floor able to carry 615 kg, levelling across the full table length so long components stay supported, three-phase connection by a qualified electrician and extraction connected to the hood. Access should be measured before delivery, and commissioning of the FR 2000 I.T. is quoted separately.
What consumables and accessories go with an FR 2000 I.T.?
An FR 2000 I.T. comes with the curved-workpiece jig and a 14 mm collet but no cutting tools, so profile heads, knives and their sharpening should be budgeted. Workshops running long rails on the FR 2000 I.T. commonly add a power feeder for consistent feed rate, plus extraction ducting and, for very long stock, outfeed support beyond the table.
