FR 2000 S Arabalı Freze Makinası — NETMAK FR 2000 S Sliding Table Spindle Moulder

NETMAK

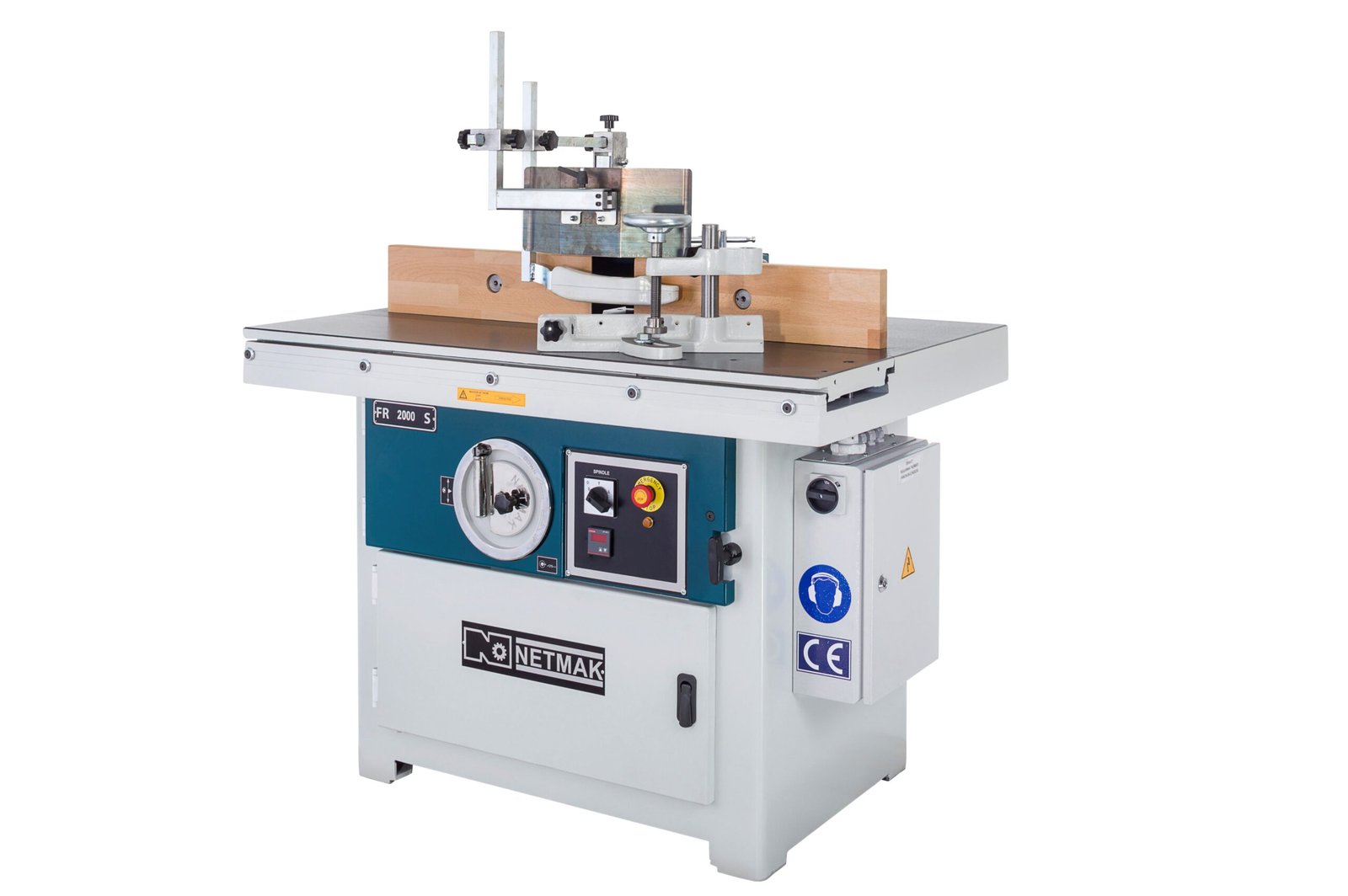

NETMAK FR 2000 S Sliding Table Spindle Moulder

FR 2000 S Arabalı Freze Makinası

A sliding carriage under the 1000 x 750 mm table is what separates the NETMAK FR 2000 S from the fixed-table FR 2000, adding supported cross-grain and tenon passes at the same 550 kg. The FR 2000 S drives a 30 mm spindle with 150 mm stroke through a 5.5 kW (7.5 HP) four-speed motor to 10,000 rpm.

ფასი მოთხოვნით

Price for the FR 2000 S is driven by the carriage specification chosen across the range (standard carriage here versus the reinforced carriage of the FR 2000 SA), the tooling package for the 30 mm spindle and 14 mm collet, any power feeder and extraction added, and delivery with commissioning.

ფასის მოთხოვნა

What the FR 2000 S does

The FR 2000 S cuts profiles, rebates, grooves and tenon shoulders into solid timber by feeding the workpiece past a tool mounted on a vertical 30 mm spindle. What separates the FR 2000 S from a fixed-table moulder is the carriage: the 1000 x 750 mm table travels with the workpiece, so a door stile or window rail is carried squarely past the cutter rather than pushed by hand across a stationary surface. Spindle speed is selected in four steps — 4000, 6000, 8000 and 10,000 rpm — letting the FR 2000 S run small-diameter router-type cutters in the 14 mm collet at the top of the range and larger bore-mounted heads at the bottom. Vertical stroke is 150 mm and height is set against a digital readout.

Who the FR 2000 S suits

The FR 2000 S fits a furniture workshop or joinery that has moved past hand-fed profiling and now needs the same moulding repeated across a batch. The 850 mm table height matches standard bench work, and the 550 kg monobloc steel body damps the vibration that shows up as chatter marks on long grain. A shop making cabinet doors, window frames, skirting or shaped chair components is the natural buyer.

How the FR 2000 S compares with its siblings

Against the FR 2000 SA, the FR 2000 S has the lighter carriage — 550 kg versus 590 kg, and a narrower 1000 mm footprint depth versus 1050 mm — which is enough for panel and frame parts but not for the heaviest entrance-door stiles. Against the FR 2100 S, the FR 2000 S trades power for speed: 5.5 kW and a fixed 30 mm spindle turning up to 10,000 rpm, where the FR 2100 S offers 7.5 kW and a 30-35 mm spindle but tops out at 8000 rpm. Choose the FR 2000 S for fine, small-diameter tooling; choose the FR 2100 S for heavy stock removal with large heads.

What is supplied with the FR 2000 S

The FR 2000 S is supplied with the sliding carriage, a curved-workpiece jig for template shaping, a guard-cover safety interlock circuit, an electromechanical spindle brake and the digital height indicator. Cutter heads, knives, a power feeder and a dust extractor are separate purchases and are not part of the published specification.

ძირითადი მახასიათებლები

  • 5.5 kW / 7.5 HP spindle motor with four selectable speeds: 4000, 6000, 8000 and 10,000 rpm
  • 1000 x 750 mm sliding carriage table set at an 850 mm working height
  • 30 mm spindle with 150 mm vertical stroke and a Morse No. 5 (5 MK) spindle taper
  • 14 mm collet for router-type cutters alongside bore-mounted profile heads
  • Monobloc welded steel body, 550 kg net, 850 x 1000 x 1400 mm overall
  • Electromechanical spindle brake for fast run-down after each pass
  • Guard-cover safety interlock circuit that cuts the spindle when the cover is opened
  • Digital spindle height indicator and a curved-workpiece jig for template shaping

ტექნიკური მახასიათებლები

Product code
FR 2000 S
Machine type
Sliding carriage spindle moulder (Arabalı Freze Makinası)
Table size
1000 x 750 mm
Table type
Sliding carriage
Table height
850 mm
Spindle diameter
30 mm
Collet
14 mm
Spindle stroke
150 mm
Spindle taper
5 MK (Morse No. 5)
Motor power
7.5 HP / 5.5 kW
Spindle speeds
4000-6000-8000-10000 rpm
Overall dimensions
850 x 1000 x 1400 mm
Net weight
550 kg
Body
Monobloc steel
Braking
Electromechanical brake system
Safety
Guard cover interlock circuit
Height display
Digital height indicator
Included jig
Curved workpiece attachment

უპირატესობები

  • Four spindle speeds up to 10,000 rpm cover both small router-type cutters and larger bore-mounted heads
  • Sliding carriage carries the workpiece squarely past the cutter instead of relying on hand feed
  • 550 kg monobloc steel body and 850 mm table height keep vibration and operator fatigue down

გასათვალისწინებელი

  • Spindle height is set by hand; the digital indicator reads position out but does not power the adjustment
  • Fixed 30 mm spindle only, so tooling with a 35 mm bore needs the FR 2100 range instead
  • No dust extractor or cutter tooling is included, and supply voltage and phase are not stated in the published specification

ხშირად დასმული კითხვები

What power supply does the FR 2000 S need?
The FR 2000 S carries a 5.5 kW / 7.5 HP four-speed spindle motor. NETMAK does not publish the supply voltage or phase on the FR 2000 S specification sheet, and a multi-speed motor of this size is not a single-phase machine in practice, so plan for an industrial three-phase connection and confirm the exact voltage with us before delivery.
How large a workpiece will the FR 2000 S handle?
The FR 2000 S has a 1000 x 750 mm table on a sliding carriage, so the supported length of a single pass is governed by that 1000 mm carriage travel plus the operator's own infeed and outfeed support. For full-length door rails, the FR 2000 I.T. with its 2000 x 800 mm extension table is the better fit than the FR 2000 S.
What tooling does the FR 2000 S take?
The FR 2000 S accepts bore-mounted cutter heads on its 30 mm spindle and router-type cutters in its 14 mm collet, and the spindle has a Morse No. 5 taper. Cutter heads, knives and limiters are not included with the FR 2000 S and are ordered separately to the profile you intend to cut.
How much floor space does the FR 2000 S need?
The FR 2000 S measures 850 x 1000 x 1400 mm overall and weighs 550 kg. Allow clear space on both sides of the FR 2000 S for the length of stock you feed, plus room behind the machine for extraction ducting, and check the floor will take a 550 kg point load before positioning.
Does the FR 2000 S include dust extraction?
No. The FR 2000 S is not supplied with a dust extractor, and extraction port sizes are not stated on the published FR 2000 S specification. A spindle moulder produces heavy chip volumes, so budget for a separate extraction unit and confirm hood and port details with us when you order.
What is the difference between the FR 2000 S and the FR 2000 SA?
The FR 2000 S and the FR 2000 SA share the same 1000 x 750 mm table, 30 mm spindle and 5.5 kW four-speed motor. The FR 2000 SA has a reinforced carriage, which raises net weight from 550 kg to 590 kg and the overall depth from 1000 mm to 1050 mm, giving steadier support for heavy stiles.
How much does the NETMAK FR 2000 S cost?
The NETMAK FR 2000 S is sold on quotation, not from a published price list. The figure quoted for an FR 2000 S depends on the tooling specified for the 30 mm spindle, whether a power feeder and dust extraction are taken with the machine, and delivery plus commissioning in Georgia. It is also worth pricing the FR 2000 S against the reinforced-carriage FR 2000 SA in the same enquiry, since the carriage is the main variable between them.
Is the FR 2000 S in stock, and how soon can one be delivered?
The FR 2000 S is a build-to-order machine from NETMAK rather than a stocked item, so delivery depends on the current production slot and on the tooling ordered alongside it. A confirmed lead time for the FR 2000 S is given on the written quotation; ask at enquiry if a specific installation date has to be met.
What does commissioning an FR 2000 S involve?
Commissioning an FR 2000 S covers more than plugging the machine in: the 550 kg body has to be levelled so that the sliding carriage runs true across the 1000 x 750 mm table, three-phase supply has to be connected by a qualified electrician, and the hood has to be joined to workshop extraction before cutting. Installation of the FR 2000 S is quoted as a separate line, so state whether delivery only or full commissioning is wanted.
What should be budgeted separately when ordering an FR 2000 S?
An FR 2000 S ships with the curved-workpiece jig and 14 mm collet but without cutters, so budget for the profile heads and knives the work needs, plus sharpening. Also budget for a power feeder if long straight runs dominate the work, for extraction ducting to the hood, and for carriage clamps or stops if tenoning is a regular job on the FR 2000 S.
