FR 2000 SA Takviye Arabalı Freze Makinası — NETMAK FR 2000 SA Reinforced Carriage Spindle Moulder

NETMAK

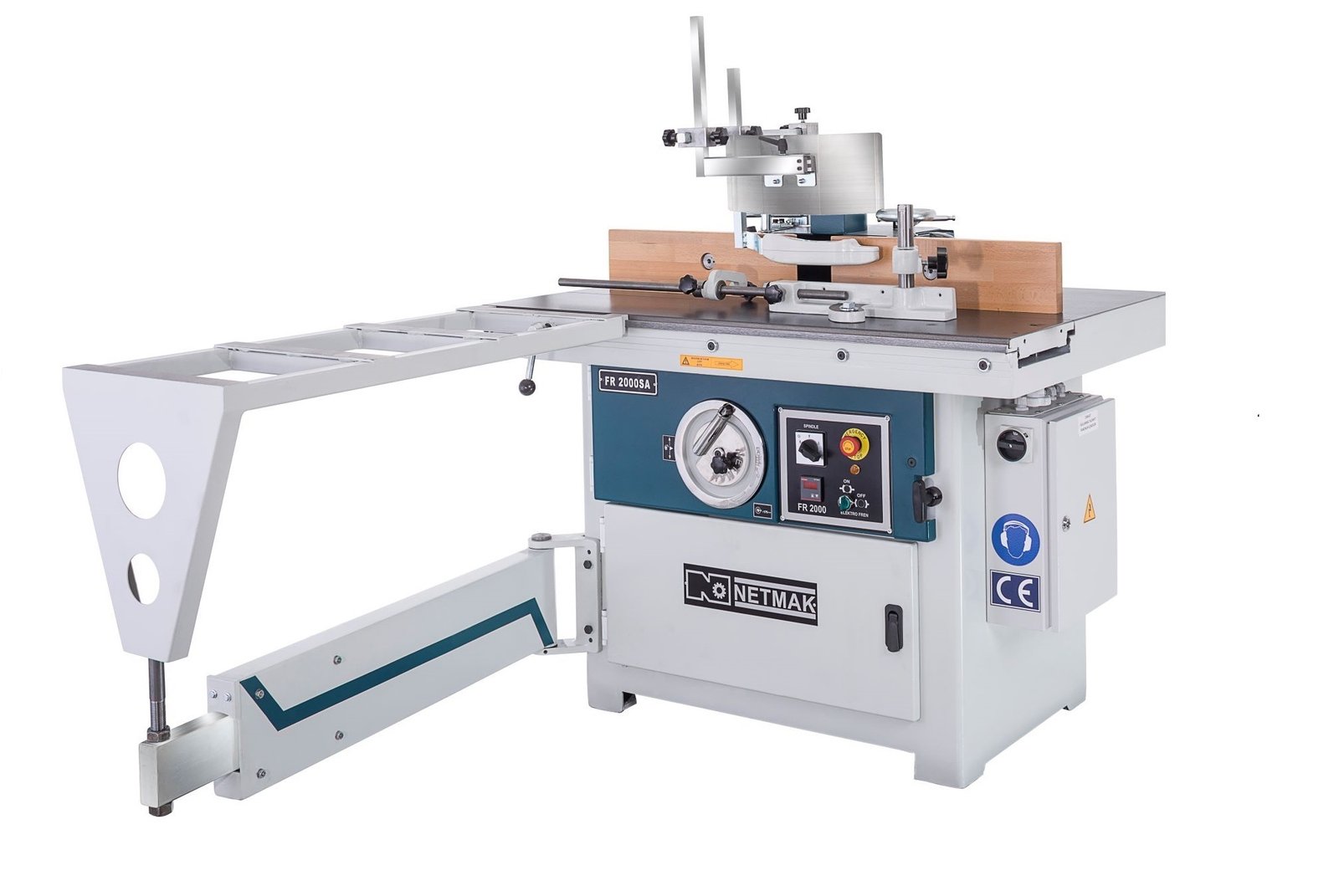

NETMAK FR 2000 SA Reinforced Carriage Spindle Moulder

FR 2000 SA Takviye Arabalı Freze Makinası

Reinforcing the carriage takes the NETMAK FR 2000 SA to 590 kg against 550 kg for the FR 2000 S, for joineries pushing long, heavy stiles across the table all day. The FR 2000 SA keeps the 1000 x 750 mm table, the 30 mm spindle with 150 mm stroke and the 5.5 kW four-speed drive to 10,000 rpm.

ფასი მოთხოვნით

What moves the price of an FR 2000 SA is the step from the standard carriage of the FR 2000 S to the reinforced one, the tooling package and any tenoning clamps or stops specified, a power feeder and extraction if taken, and delivery with rigging of a 590 kg machine into the workshop.

ფასის მოთხოვნა

What the FR 2000 SA does

The FR 2000 SA moulds profiles, rebates and grooves into solid timber, and the reinforced carriage is the reason to choose this model over the standard one. On the FR 2000 SA the 1000 x 750 mm table rides on a strengthened carriage assembly, which adds 40 kg of net weight over the plain sliding version and 50 mm of overall depth. That extra mass and support keeps the table from deflecting when a heavy stile is clamped out toward the end of the carriage — the condition in which a lighter carriage lets the cut wander. Spindle speeds are selectable at 4000, 6000, 8000 and 10,000 rpm from a 5.5 kW motor, with 150 mm of vertical spindle travel read off a digital indicator.

Who the FR 2000 SA suits

The FR 2000 SA is for a joinery or door shop that runs long, heavy components through the moulder repeatedly rather than occasionally. If a workshop is profiling interior door stiles, window frame members or heavy cabinet rails all day, the reinforced carriage on the FR 2000 SA earns its cost in consistency across a batch. A shop doing mostly short furniture parts will not see the benefit.

How the FR 2000 SA compares with its siblings

The FR 2000 SA and the FR 2000 S are mechanically identical above the table: same 1000 x 750 mm surface, same 30 mm spindle, same 14 mm collet, same 5.5 kW four-speed motor. The difference is entirely underneath — 590 kg against 550 kg, 1050 mm depth against 1000 mm. Compared with the FR 2100 SA, the FR 2000 SA is the lighter and faster machine: 5.5 kW and 10,000 rpm against 7.5 kW and 8000 rpm, and a 1000 x 750 mm table against 1200 x 800 mm. Buy the FR 2000 SA when carriage rigidity matters more than raw motor power.

What is supplied with the FR 2000 SA

The FR 2000 SA arrives with the reinforced carriage, a curved-workpiece jig, an electromechanical spindle brake, a guard-cover safety interlock circuit and a digital spindle height indicator. Cutter heads, knives, power feeders and extraction equipment are not included in the published FR 2000 SA specification.

ძირითადი მახასიათებლები

  • Reinforced sliding carriage, 40 kg heavier at 590 kg net than the standard FR 2000 S carriage
  • 5.5 kW / 7.5 HP motor with four spindle speeds: 4000, 6000, 8000 and 10,000 rpm
  • 1000 x 750 mm table at 850 mm working height, 850 x 1050 x 1400 mm overall
  • 30 mm spindle with 150 mm vertical stroke and a Morse No. 5 (5 MK) taper
  • 14 mm collet for router-type cutters in addition to bore-mounted heads
  • Monobloc steel body with an electromechanical spindle brake
  • Guard-cover safety interlock circuit that isolates the spindle when opened
  • Digital height indicator and curved-workpiece jig included as standard

ტექნიკური მახასიათებლები

Product code
FR 2000 SA
Machine type
Reinforced sliding carriage spindle moulder (Takviye Arabalı Freze Makinası)
Table size
1000 x 750 mm
Table type
Reinforced sliding carriage
Table height
850 mm
Spindle diameter
30 mm
Collet
14 mm
Spindle stroke
150 mm
Spindle taper
5 MK (Morse No. 5)
Motor power
7.5 HP / 5.5 kW
Spindle speeds
4000-6000-8000-10000 rpm
Overall dimensions
850 x 1050 x 1400 mm
Net weight
590 kg
Body
Monobloc steel
Braking
Electromechanical brake system
Safety
Guard cover interlock circuit
Height display
Digital height indicator
Included jig
Curved workpiece attachment

უპირატესობები

  • Reinforced carriage adds real rigidity for long, heavy stiles without changing the tooling you already own
  • Four speeds to 10,000 rpm from the 5.5 kW motor suit small-diameter cutters as well as larger heads
  • Curved-workpiece jig, digital height readout and electromechanical brake are all standard, not extras

გასათვალისწინებელი

  • 50 mm deeper and 40 kg heavier than the FR 2000 S, so it needs slightly more floor space and a firmer slab
  • Spindle diameter is fixed at 30 mm; 35 mm bore tooling requires the FR 2100 SA instead
  • Extraction, cutter tooling and a power feeder are all separate purchases, and supply voltage is not published

ხშირად დასმული კითხვები

What does the reinforced carriage on the FR 2000 SA actually change?
The reinforced carriage on the FR 2000 SA raises net weight to 590 kg against 550 kg for the standard FR 2000 S, and overall depth to 1050 mm against 1000 mm, while the 1000 x 750 mm table size, 30 mm spindle and 5.5 kW motor stay the same. The gain is table rigidity when heavy or overhanging stock is clamped on the carriage.
What power supply does the FR 2000 SA need?
The FR 2000 SA runs a 5.5 kW / 7.5 HP four-speed spindle motor. Supply voltage and phase are not printed on the NETMAK specification sheet for the FR 2000 SA, so plan for an industrial three-phase connection and confirm the exact voltage and cable size with us before the FR 2000 SA is delivered.
What tooling fits the FR 2000 SA?
The FR 2000 SA takes bore-mounted profile heads on its 30 mm spindle and router-type cutters in its 14 mm collet, with a Morse No. 5 spindle taper. No cutter heads or knives are included with the FR 2000 SA; tooling is specified separately to the profile you need to produce.
How much space does the FR 2000 SA require?
The FR 2000 SA occupies 850 x 1050 x 1400 mm and weighs 590 kg. Around that, allow free run-out on both sides for the length of the components you mould and access at the rear of the FR 2000 SA for extraction ducting and the electrical connection.
Can the FR 2000 SA mould curved parts?
Yes. The FR 2000 SA is supplied with a curved-workpiece jig for template-guided shaping, so curved chair rails and arched frame parts can be run against a template rather than the straight fence. The FR 2000 SA does not, however, include the templates themselves.
Does the FR 2000 SA come with a power feeder?
No. A power feeder is a separate machine and is not part of the published FR 2000 SA specification. Many workshops pair the FR 2000 SA with a three or four-roller automatic feeder for consistent feed rate on long runs, and we can quote one alongside the machine.
How much does the NETMAK FR 2000 SA cost?
The NETMAK FR 2000 SA is quoted rather than listed at a fixed price. The quoted figure for an FR 2000 SA reflects the reinforced-carriage specification itself, the tooling package for the 30 mm spindle, clamps or stops added for repeat tenoning, any power feeder and extraction, and delivery with rigging. Because the FR 2000 SA differs from the FR 2000 S essentially in carriage build, it helps to have both quoted together.
How long does it take to get an FR 2000 SA?
The FR 2000 SA is manufactured to order by NETMAK, so it is not drawn from stock. Availability depends on the production slot at the time of ordering and on the tooling package specified with the FR 2000 SA; the applicable lead time is confirmed in writing on the quotation.
What is involved in installing an FR 2000 SA?
Installing an FR 2000 SA means moving 590 kg into position on a solid, level floor with room for the reinforced carriage to run, levelling the machine so the carriage and table stay coplanar, having a qualified electrician make the three-phase connection, and coupling the hood to workshop extraction. Installation and commissioning of the FR 2000 SA are quoted separately from the machine.
What extras should be budgeted with an FR 2000 SA?
An FR 2000 SA includes the curved-workpiece attachment and 14 mm collet but no cutters, so profile heads, knives and sharpening belong in the budget. Workshops buying the FR 2000 SA for heavy repetitive components should also budget for carriage clamps and stops, a power feeder for straight runs, and extraction ducting sized for the hood.
