FR 2000 Freze Makinasi — Netmak FR 2000 Spindle Moulder

NETMAK

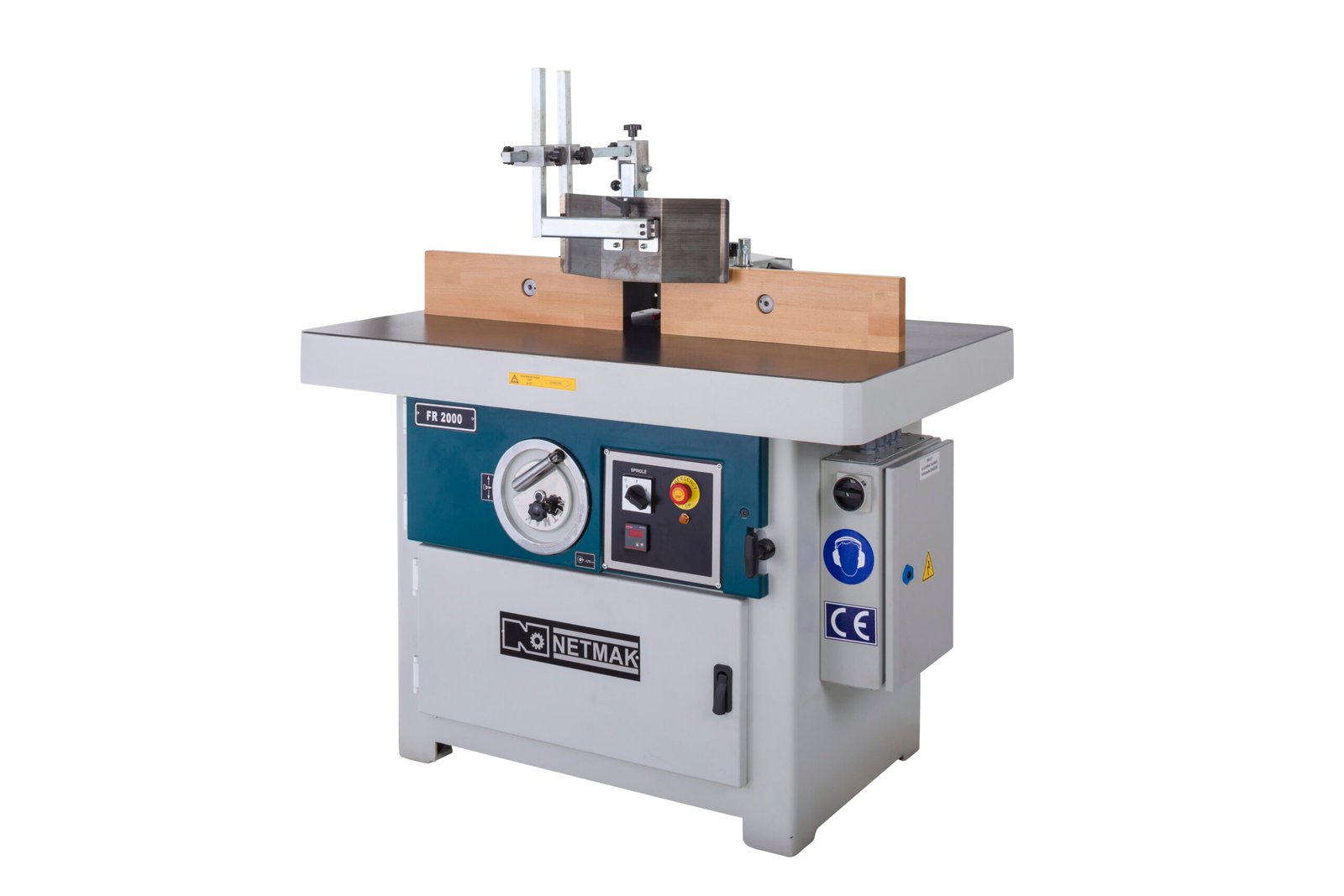

Netmak FR 2000 Spindle Moulder

FR 2000 Freze Makinasi

The NETMAK FR 2000 is the fixed flat-table member of the FR 2000 line, with no sliding carriage under the 1000 x 750 mm table, a 30 mm spindle with 150 mm stroke and a 5.5 kW (7.5 HP) motor running four speeds up to 10,000 rpm. Net weight of the FR 2000 is 550 kg on a monoblock steel body.

ფასი მოთხოვნით

The quoted price of an FR 2000 moves mainly with the tooling package (bore-mounted profile heads plus 14 mm collet cutters), whether a power feeder and dust extraction unit are added, and delivery, rigging and commissioning at the workshop.

ფასის მოთხოვნა

What the NETMAK FR 2000 does

The NETMAK FR 2000 is a spindle moulder for profiling, rebating, grooving and tenoning solid timber, the machine a joinery reaches for when a router table can no longer hold the cut. Its 30 mm spindle rises through 150 mm of stroke and turns at 4,000, 6,000, 8,000 or 10,000 rpm from a 7.5 HP / 5.5 kW motor, which is the range needed to run everything from a large panel-raising head at low speed to a small profile cutter at high speed. A No. 5 Morse taper and a 14 mm collet extend the NETMAK FR 2000 to smaller tooling.

Who the NETMAK FR 2000 suits

Door, window and stair workshops in Georgia are the natural buyers for the NETMAK FR 2000, because those trades cut the same profiles repeatedly and need the result identical across a batch. The 550 kg monoblock steel body is the reason: mass is what stops a moulder chattering when a heavy cutterblock meets hardwood. The digital height indicator on the NETMAK FR 2000 is what makes returning to a stored profile setting a two-minute job rather than a trial-and-error session with test pieces.

How the NETMAK FR 2000 compares in the Netmak range

The NETMAK FR 2000 is the fixed-table base model of its family, with a 1000 x 750 mm flat table and no sliding carriage. Netmak builds three variants directly above it: the FR 2000 S adds a sliding carriage, the FR 2000 SA adds a reinforced carriage, and the FR 2000 İ.T. adds an extension table. A carriage matters for tenoning and for feeding long or wide stock squarely across the cutter, so a workshop planning tenon work should price the FR 2000 S rather than assume the base NETMAK FR 2000 will cover it. The FR 2100 series sits above the whole FR 2000 group.

Safety and what is included with the NETMAK FR 2000

The NETMAK FR 2000 is supplied with an electromechanical brake system that stops the spindle quickly after switch-off, a guard protection circuit that prevents running with the cover open, a curved-workpiece attachment for shaped parts, and the digital height indicator. Cutterblocks, cutters, rings and a power feeder are not included with the NETMAK FR 2000, nor is dust extraction, and both should be budgeted alongside the machine.

ძირითადი მახასიათებლები

  • Monoblock steel body weighing 550 kg for vibration-free profiling in hardwood
  • 30 mm spindle with 150 mm vertical stroke and a No. 5 Morse taper, plus a 14 mm collet
  • 7.5 HP / 5.5 kW motor with four spindle speeds: 4,000, 6,000, 8,000 and 10,000 rpm
  • 1000 x 750 mm flat table at 850 mm working height
  • Electromechanical brake system for rapid spindle stop after switch-off
  • Guard protection circuit preventing operation with the cover open
  • Digital height indicator for repeatable, precise spindle setting
  • Curved-workpiece attachment supplied for shaped and arched components
  • Overall dimensions 850 x 1000 x 1400 mm

ტექნიკური მახასიათებლები

Product Code
FR 2000
Product Name
Spindle Moulder (Freze Makinası)
Table Size
1000 x 750 mm
Table Type
Flat table
Table Height
850 mm
Spindle Diameter
30 mm
Collet
14 mm
Spindle Stroke
150 mm
Spindle Taper
No. 5 Morse (5 MK)
Motor Power
7.5 HP / 5.5 kW
Spindle Speeds
4,000 / 6,000 / 8,000 / 10,000 rpm
Overall Dimensions
850 x 1000 x 1400 mm
Net Weight
550 kg
Body
Monoblock steel
Brake System
Electromechanical
Safety
Cover/guard protection circuit
Height Indicator
Digital
Curved Workpiece Attachment
Included

უპირატესობები

  • 550 kg monoblock steel body keeps heavy cutterblocks steady in hardwood
  • Four spindle speeds up to 10,000 rpm cover both large panel heads and small profile cutters
  • Electromechanical brake and guard protection circuit are fitted as standard, not as options

გასათვალისწინებელი

  • Fixed flat table with no sliding carriage — tenoning needs the FR 2000 S or SA instead
  • A 5.5 kW motor means a three-phase supply, and Netmak does not print the voltage on the datasheet
  • Cutterblocks, a power feeder and dust extraction are all separate purchases on top of the machine

ხშირად დასმული კითხვები

What spindle speeds does the NETMAK FR 2000 offer?
The NETMAK FR 2000 runs at four spindle speeds — 4,000, 6,000, 8,000 and 10,000 rpm — driven by a 7.5 HP / 5.5 kW motor. Large-diameter cutterblocks are run at the lower speeds on the NETMAK FR 2000 and small profile cutters at the higher ones.
What tooling does the NETMAK FR 2000 take?
The NETMAK FR 2000 has a 30 mm spindle with a No. 5 Morse taper and accepts a 14 mm collet for router-type cutters. Cutterblocks, profile knives, spacing rings and collets are not included with the NETMAK FR 2000 and are quoted separately.
How much space and weight does the NETMAK FR 2000 need?
The NETMAK FR 2000 measures 850 x 1000 x 1400 mm and weighs 550 kg, with a 1000 x 750 mm table at 850 mm height. Allow clear feeding space on both sides of the NETMAK FR 2000 for the full length of the stock being moulded, plus room behind for extraction ducting.
What power supply does the NETMAK FR 2000 need?
Netmak does not print a voltage or phase on the FR 2000 spec sheet, but the machine carries a 5.5 kW motor, which in this class means a 400 V three-phase supply. The exact electrical requirement of the NETMAK FR 2000 must be confirmed with the supplier before the workshop connection is prepared.
Does the NETMAK FR 2000 have a sliding table for tenoning?
No — the NETMAK FR 2000 is the flat fixed-table model. A sliding carriage is offered on the FR 2000 S, a reinforced carriage on the FR 2000 SA and an extension table on the FR 2000 İ.T., so a workshop that needs to tenon should specify one of those variants rather than the base NETMAK FR 2000.
Does the NETMAK FR 2000 come with a power feeder or extraction?
No — a power feeder and a dust extraction unit are separate purchases and are not included with the NETMAK FR 2000. Both are strongly recommended: a feeder improves finish and safety on repeated profile runs, and extraction is required to keep the 1000 x 750 mm table clear of chips.
How much does the NETMAK FR 2000 cost?
The NETMAK FR 2000 is supplied on quotation rather than at a published list price. What sets the figure for an FR 2000 is the tooling package chosen (bore-mounted heads for the 30 mm spindle and cutters for the 14 mm collet), whether a power feeder and extraction unit go with the machine, and delivery, rigging and commissioning. Send the profiles and timber sections to be run and a quotation for the FR 2000 can be prepared against them.
What is the lead time for a NETMAK FR 2000?
The NETMAK FR 2000 is built to order rather than held in stock, so availability depends on the current production slot at NETMAK and on the tooling ordered with the machine. The confirmed lead time for an FR 2000 is stated in writing on the quotation, and a requested delivery date can be checked before an order is placed.
Does the quotation for the FR 2000 include installation and commissioning?
Installation and commissioning of the FR 2000 are quoted as a line of their own, not assumed. That line covers positioning and levelling the 550 kg machine, three-phase connection by a qualified electrician, connection to workshop extraction, first cutter fitting and a run-off with the operator. Confirm at enquiry whether the FR 2000 is wanted delivered only or delivered and commissioned.
What tooling and consumables should be budgeted alongside the FR 2000?
The FR 2000 arrives with the curved-workpiece attachment and a 14 mm collet, but not with cutters. Budget separately for the profile heads and knives the work actually calls for on a 30 mm spindle, a power feeder for straight repetitive runs, dust extraction capacity for the hood, and periodic knife sharpening or replacement. These items are quoted with the FR 2000 on request.
