FR 2100 İ.T. İlave Tablalı Freze Makinası — NETMAK FR 2100 I.T. Extension Table Spindle Moulder

NETMAK

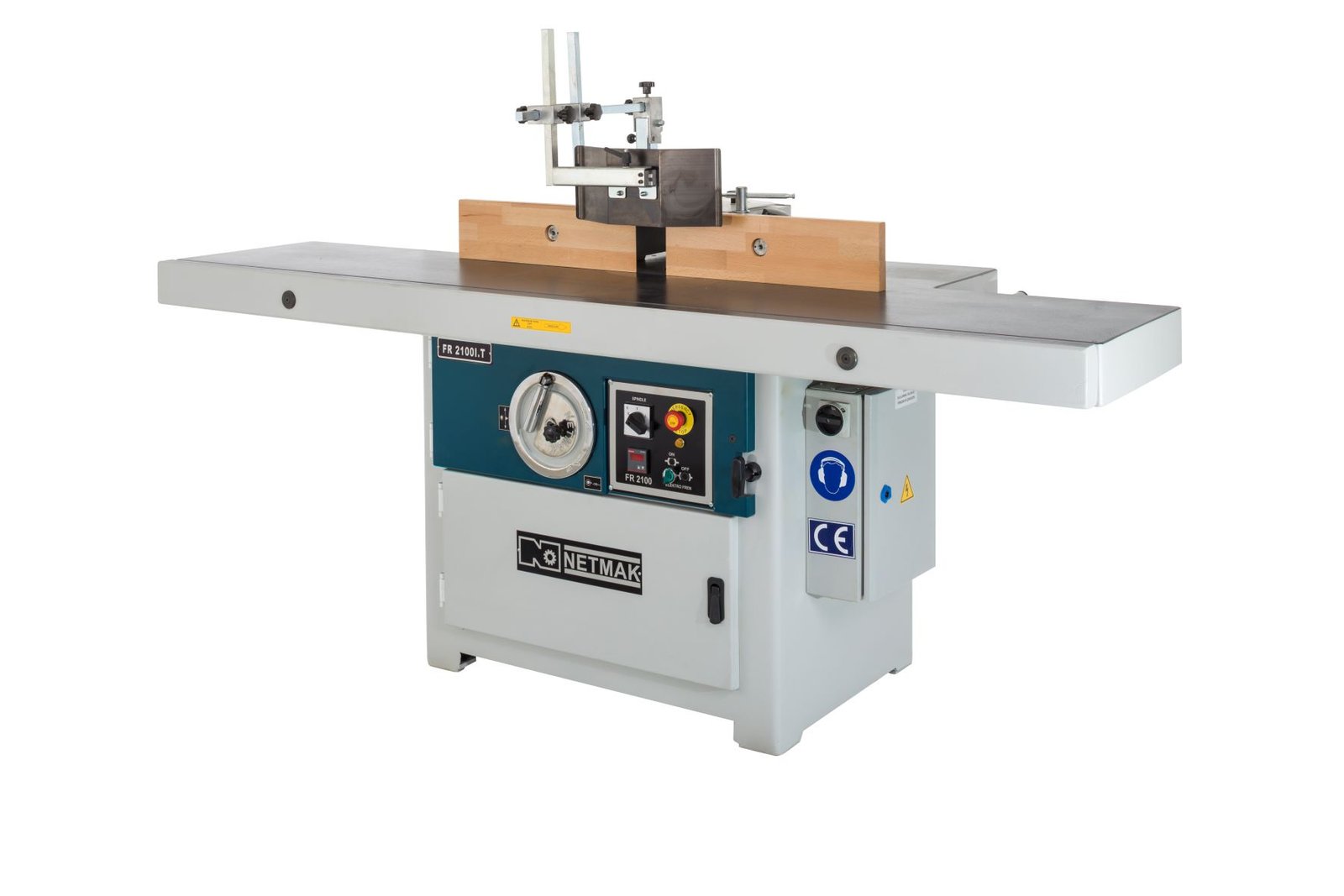

NETMAK FR 2100 I.T. Extension Table Spindle Moulder

FR 2100 İ.T. İlave Tablalı Freze Makinası

At 2200 x 840 mm the NETMAK FR 2100 I.T. carries the longest table in the FR range, 200 mm more than the FR 2000 I.T., and supports a full casement rail through the whole cut. The FR 2100 I.T. weighs 725 kg and runs a 30-35 mm spindle on a 7.5 kW motor at 4000, 6000 and 8000 rpm.

ფასი მოთხოვნით

Delivery and rigging weigh unusually heavily on an FR 2100 I.T. because a 2200 mm table and 725 kg often need a planned access route; beyond that the price follows the spindle bore chosen (30 mm or 35 mm), the profile-head package, and any power feeder and extraction taken with the machine.

ფასის მოთხოვნა

What the FR 2100 I.T. does

The FR 2100 I.T. is the largest spindle moulder in NETMAK’s FR range and the one built around length. Its 2200 x 840 mm extension table is more than 80 per cent longer than the 1200 x 800 mm table of the standard FR 2100 models, which means a full interior door rail sits supported from end to end while the profile is cut. Behind the table the FR 2100 I.T. uses the range’s 7.5 kW / 10 HP motor, a 30-35 mm spindle with 150 mm of vertical travel and three spindle speeds of 4000, 6000 and 8000 rpm, so the long table is not paired with an undersized drive.

Who the FR 2100 I.T. suits

The FR 2100 I.T. belongs in a door factory or a large joinery where long components are the main output, not an exception. Door stiles and rails, window casement sections, staircase strings, architrave and long skirting runs all pass across the FR 2100 I.T. without an operator having to catch the far end. At 725 kg it is also the heaviest machine in the FR range, which matters when a two-metre board is cantilevered off one end of the table.

How the FR 2100 I.T. compares with its siblings

Against the FR 2000 I.T., the FR 2100 I.T. is bigger in every direction that counts: a 2200 x 840 mm table against 2000 x 800 mm, 7.5 kW against 5.5 kW, a 30-35 mm spindle against a fixed 30 mm, and 725 kg against 615 kg — with a lower 8000 rpm ceiling instead of 10,000 rpm. Against the FR 2100 S and FR 2100 SA, the FR 2100 I.T. trades carriage-based tenoning for length: at 950 x 2200 x 1300 mm it needs almost a metre more floor depth than the 1250 mm of the carriage models.

What is supplied with the FR 2100 I.T.

The FR 2100 I.T. is delivered with its extension table, a curved-workpiece jig, an electromechanical spindle brake, a guard-cover safety interlock circuit and a digital spindle height indicator, all mounted on a monobloc steel body. Cutter heads, knives, limiters, a power feeder and dust extraction are not part of the FR 2100 I.T. package.

ძირითადი მახასიათებლები

  • Supplied with the İlave Tablalı additional table instead of the sliding carriage fitted to the S version
  • 2200 x 840 mm extension table — the longest work surface in NETMAK's FR moulder range
  • 7.5 kW / 10 HP motor with three spindle speeds: 4000, 6000 and 8000 rpm
  • Spindle available in 30 mm or 35 mm diameter with 150 mm vertical stroke
  • 725 kg monobloc steel body, the heaviest machine in the FR range
  • 850 mm table height with 950 x 2200 x 1300 mm overall dimensions
  • 14 mm collet for router-type cutters plus a Morse No. 5 (5 MK) spindle taper
  • Electromechanical spindle brake and guard-cover interlock safety circuit
  • Digital height indicator and curved-workpiece jig fitted as standard

ტექნიკური მახასიათებლები

Product code
FR 2100 İ.T.
Machine type
Extension table spindle moulder (İlave Tablalı Freze Makinası)
Table size
2200 x 840 mm
Table type
Extension table
Table height
850 mm
Spindle diameter
30-35 mm
Collet
14 mm
Spindle stroke
150 mm
Spindle taper
5 MK (Morse No. 5)
Motor power
10 HP / 7.5 kW
Spindle speeds
4000-6000-8000 rpm
Overall dimensions
950 x 2200 x 1300 mm
Net weight
725 kg
Body
Monobloc steel
Braking
Electromechanical brake system
Safety
Guard cover interlock circuit
Height display
Digital height indicator
Included jig
Curved workpiece attachment

უპირატესობები

  • 2200 x 840 mm table supports a full door rail end to end with no additional stands
  • 7.5 kW motor and 30-35 mm spindle drive large heads through deep profiles at full length
  • 725 kg of monobloc steel resists the leverage of a cantilevered two-metre board

გასათვალისწინებელი

  • 2200 mm machine depth plus infeed and outfeed run demands a long, dedicated floor area
  • No sliding carriage, so cross-grain tenoning belongs on the FR 2100 S or FR 2100 SA
  • 8000 rpm maximum, and tooling, power feeder and extraction are all separate purchases

ხშირად დასმული კითხვები

How long a component will the FR 2100 I.T. support?
The FR 2100 I.T. has a 2200 x 840 mm extension table, so a door rail or skirting run of roughly two metres is supported for effectively its whole length during the pass. Stock longer than the FR 2100 I.T. table will still need roller stands at the infeed and outfeed.
What power supply does the FR 2100 I.T. need?
The FR 2100 I.T. carries a 7.5 kW / 10 HP three-speed spindle motor. Supply voltage, phase and frequency are not published on the NETMAK specification for the FR 2100 I.T., so plan for an industrial three-phase connection and confirm the exact voltage and protection with us before ordering.
How much floor space does the FR 2100 I.T. need?
The FR 2100 I.T. measures 950 x 2200 x 1300 mm and weighs 725 kg. Because stock has to enter and leave along the 2200 mm axis, the FR 2100 I.T. realistically needs a run of six metres or more of clear floor, which usually means siting it along a wall in the middle of the shop rather than in a corner.
Does the FR 2100 I.T. cut tenons like the carriage models?
Not in the same way. The FR 2100 I.T. is built around a long extension table for through-feed profiling rather than a sliding carriage, so carriage-clamped cross-grain tenoning is the job of the FR 2100 S or FR 2100 SA rather than the FR 2100 I.T.
What tooling does the FR 2100 I.T. require?
The FR 2100 I.T. takes bore-mounted cutter heads on its 30-35 mm spindle and router-type cutters in its 14 mm collet. No tooling is included with the FR 2100 I.T., and most workshops also add an automatic power feeder to keep the feed rate constant over a two-metre pass.
Is dust extraction included with the FR 2100 I.T.?
No. The FR 2100 I.T. is supplied without an extraction unit and extraction port sizes are not stated in the published specification. Long, deep profile runs on the FR 2100 I.T. produce a high chip volume, so an adequately sized extractor should be specified with the machine.
How much does the NETMAK FR 2100 I.T. cost?
The NETMAK FR 2100 I.T. is supplied on quotation rather than at a published price. Cost for an FR 2100 I.T. is driven by the 2200 x 840 mm extension-table configuration, the spindle bore specified (30 mm or 35 mm), the profile heads ordered, any power feeder and extraction, and delivery plus rigging, which matters more here than on the shorter models. Give the longest component to be machined and the FR 2100 I.T. can be quoted around it.
What is the lead time for an FR 2100 I.T.?
The FR 2100 I.T. is built to order by NETMAK, not taken from stock, so timing depends on the factory production slot and the tooling ordered with the machine. A confirmed lead time for the FR 2100 I.T. is given on the written quotation, and a required installation date can be checked before an order is confirmed.
What has to be prepared before an FR 2100 I.T. is installed?
Before an FR 2100 I.T. arrives, measure the access route for a 2200 mm table, confirm the floor will carry 725 kg, and set aside a bay with clear run-out at both ends so long rails can pass. Commissioning of the FR 2100 I.T. then covers levelling along the full table length, three-phase connection by a qualified electrician and extraction connected to the hood; it is quoted separately from the machine.
What tooling and accessories should be budgeted with an FR 2100 I.T.?
An FR 2100 I.T. is delivered with a 14 mm collet and the curved-workpiece jig but without cutters, so profile heads matched to the chosen 30 or 35 mm bore, spare knives and sharpening should be budgeted. Shops running long stock on the FR 2100 I.T. also commonly add a power feeder for constant feed rate and extraction ducting sized for continuous production.
