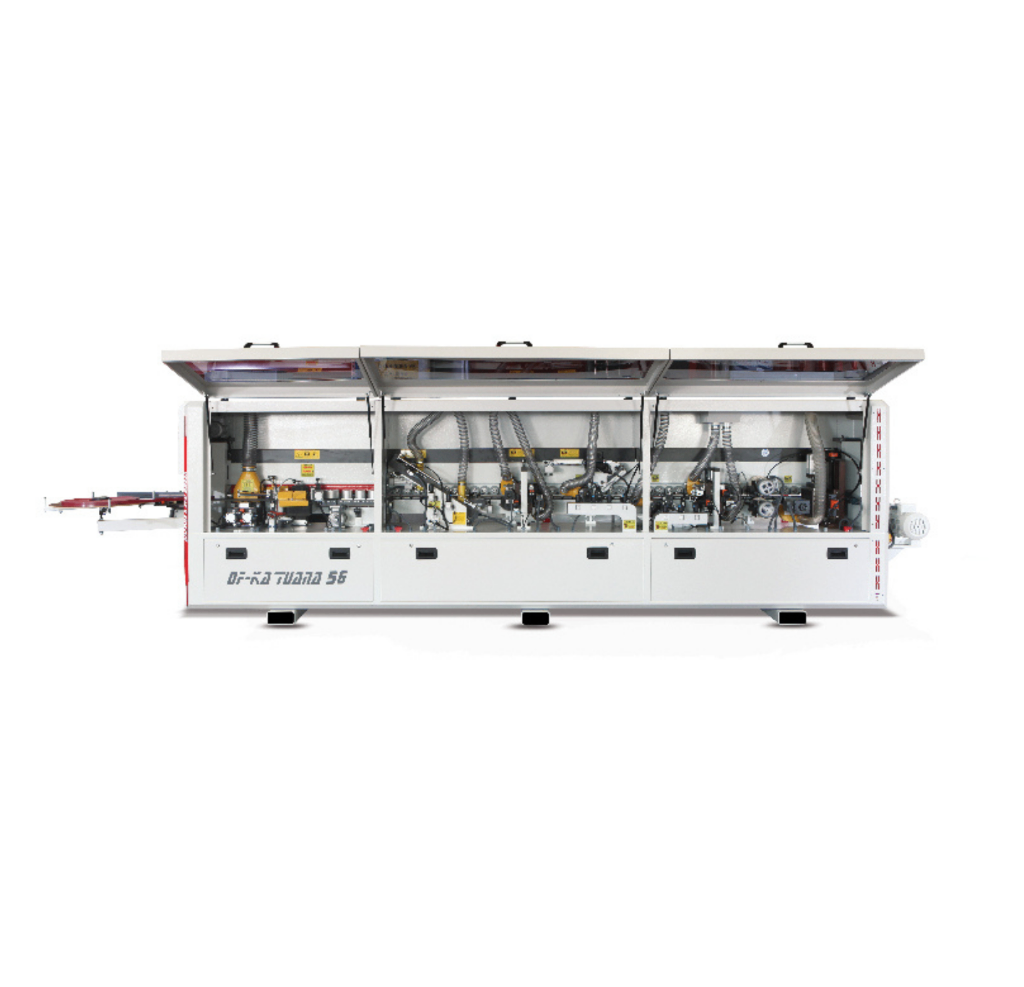

MIZRAK OF-KA TUANA 56 Edge Banding Machine

1 / 4

A 2.6 kW inline grooving unit is the advantage of the OF-KA TUANA 56 over the otherwise similar OF TUANA 56, cutting the back-panel groove on the same pass as the edge. The OF-KA TUANA 56 bands 8 to 54 mm panels at 14 m/min on 12.68 kW, measuring 6200 x 800 x 1600 mm at 2000 kg.

დეტალის სისქე: 8 – 54 mm
სამუშაო სიჩქარე: 14 m/min
ჰაერის წნევა: 6 – 8 atm
წონა: 2000 kg

ახალი
შეკვეთით

ფასი ფასი მოთხოვნით

The OF-KA TUANA 56 price is driven by the grooving unit and finishing unit configuration, the blade and spare tooling package, the chip extraction system and compressor needed to run it, and delivery, rigging into a 6200 mm bay and the 12.68 kW electrical connection.

ფასის მოთხოვნა

WhatsApp +995 599 88 74 04

ირაკლი გაყიდვების მენეჯერი

კონფიგურაცია თქვენს ძაბვასა და ზომებზე
მიწოდება, მონტაჟი და გაშვება ადგილზე
ქარხნული გარანტია და სათადარიგო ნაწილები

What the OF-KA TUANA 56 does

The OF-KA TUANA 56 is an automatic edge banding machine for panels 8 to 54 mm thick, running edge tape from 0.40 to 3 mm at a conveyor speed of 14 m/min. The OF-KA TUANA 56 performs the whole edging cycle in one pass: double-jumping pre-milling, gluing, shearing and pressing, front and end cutting, automatic milling, 54 mm trimming, automatic scraping, glue cleaning fluid, polishing and hot air blowing. Minimum workpiece width is 100 mm.

The grooving unit

The jumping and universal grooving unit is the reason most buyers choose the OF-KA TUANA 56 over the OF TUANA 56. Driven by a 2.6 kW motor at 12,000 rpm with a Ø80 x 8.5 mm grooving blade, the unit cuts the back-panel groove on the same pass as the edge is banded, which removes a separate operation on a spindle moulder or table saw for every carcase side. The hot air blowing system on the OF-KA TUANA 56 is also what allows zero-joint style tapes with a heat-reactivated functional layer to be applied.

Where the OF-KA TUANA 56 sits in the range

The OF-KA TUANA 56 is the middle machine of three. Below it, the OF TUANA 56 shares the same 8-54 mm capacity and 14 m/min speed but has no grooving unit and no hot air blowing, and draws 10.08 kW against 12.68 kW. Above it, the OF-KA TUANA 56 PREMIUM adds PLC control, servo pre-tracing, sensor-controlled glue feeding and two-motor corner rounding, takes 60 mm panels, runs at 14-18 m/min and draws 19.38 kW. Workshops that band square-edge carcase parts and need grooves, but do not round corners, land on the OF-KA TUANA 56.

Installation requirements

The OF-KA TUANA 56 measures 6200 x 800 x 1600 mm and weighs 2000 kg, with a working height of 875 mm. Services required are a 380-430 V AC 50-60 Hz three-phase supply, 12.68 kW of connected power and compressed air at 6-8 atm. Glue pot capacity is 3.5 kg and the measured sound level is Lwa 82.9 dB.

ძირითადი მახასიათებლები

Workpiece thickness 8-54 mm at a fixed working speed of 14 m/min, minimum width 100 mm
Edge tape from 0.40 mm to 3 mm with a 54 mm trim unit
2.6 kW grooving motor at 12,000 rpm with a Ø80 mm - 8.5 mm blade for jumping and universal grooving
1.5 kW double-jumping pre-milling unit at 12,000 rpm with a Ø70 x 50 x 20 mm blade
3.5 kg glue pot with pre-heater, shear and pressing units and glue cleaning liquid
0.25 kW oscillating polishing unit at 2840 rpm plus an automatic scraping unit and hot air blowing system
3 kW chain conveyor motor and 12.68 kW total electric power at 380-430 V AC
6200 x 800 x 1600 mm machine size, 875 mm working height, 2000 kg weight

ტექნიკური მახასიათებლები

Nominal Current: 380–430 V AC, 50–60 Hz
Sound Level: Lwa 82.9 dB
Band Thickness: 0.40 mm – 3 mm
Workpiece Thickness: 8 – 54 mm
Minimum Workpiece Width: 100 mm
Working Speed: 14 m/min
Working Height: 875 mm
Glue Pot Capacity (Max.): 3.5 kg
Air Pressure: 6 – 8 atm
Pre-Milling Saw Blade Diameter: Ø70 x 50 x 20 mm
End Trimming Saw Blade Diameter: Ø100 x 3.2 mm
Top-Bottom Trimming Blade Diameter: Ø49 x R3 mm
Trim Trimming Blade Diameter: Ø42 x R3 mm
Grooving Saw Blade Diameter: Ø80 mm – 8.5 mm
Max. Corner Rounding Distance: 42 mm
Pre-Milling Motor Power / Speed: 1.5 kW / 12,000 rpm
End Trimming Motor Power / Speed: 0.55 kW / 12,000 rpm
Top-Bottom Trimming Motor Power / Speed: 0.75 kW / 12,000 rpm
Trim Trimming Motor Power / Speed: 0.55 kW / 12,000 rpm
Grooving Motor Power / Speed: 2.6 kW / 12,000 rpm
Polishing Motor Power / Speed: 0.25 kW / 2840 rpm
Chain Conveyor Motor Power / Speed: 3 kW / 15 rpm
Total Electric Power: 12.68 kW
Machine Length: 6200 mm
Machine Width: 800 mm
Machine Height: 1600 mm
Machine Weight: 2000 kg

უპირატესობები

Inline grooving unit with a 2.6 kW motor removes a separate back-panel grooving operation
Full finishing sequence with scraping, glue cleaning liquid, polishing and hot air blowing
12.68 kW connected load, considerably lighter to install than the 19.38 kW PREMIUM version

გასათვალისწინებელი

Fixed 14 m/min conveyor speed with no variable feed, unlike the 14-18 m/min PREMIUM
54 mm maximum workpiece thickness rules out thicker worktops and door panels
No corner rounding unit in the supplied unit list, and a separate chip extraction system and compressor are required

ხშირად დასმული კითხვები

What panel thickness can the OF-KA TUANA 56 band?

The OF-KA TUANA 56 handles workpieces from 8 to 54 mm thick with a minimum workpiece width of 100 mm, and applies edge tape from 0.40 to 3 mm. Workshops banding panels thicker than 54 mm need the OF-KA TUANA 56 PREMIUM, which goes to 60 mm.

What power and air supply does the OF-KA TUANA 56 need?

The OF-KA TUANA 56 needs a 380-430 V AC 50-60 Hz three-phase supply with a total electric power of 12.68 kW, plus compressed air at 6-8 atm. A compressor must be sized for the OF-KA TUANA 56 and installed alongside it.

Can the OF-KA TUANA 56 cut back-panel grooves?

Yes. The OF-KA TUANA 56 has a jumping and universal grooving unit driven by a 2.6 kW motor at 12,000 rpm with a Ø80 mm - 8.5 mm blade, so the back-panel groove is cut in the same pass as the edge is banded. This is the main feature the OF-KA TUANA 56 has over the OF TUANA 56.

How much floor space does the OF-KA TUANA 56 need?

The OF-KA TUANA 56 is 6200 mm long, 800 mm wide and 1600 mm high and weighs 2000 kg, with a working height of 875 mm. Allow infeed and outfeed room for the longest panel, so a clear run of roughly 10-11 metres is realistic for the OF-KA TUANA 56.

Does the OF-KA TUANA 56 round corners?

The supplied unit list for the OF-KA TUANA 56 does not include a corner rounding unit, although the specification table quotes a maximum corner rounding distance of 42 mm. Confirm with the supplier whether corner rounding is fitted or optional on the OF-KA TUANA 56; the OF-KA TUANA 56 PREMIUM has a two-motor corner rounding unit as standard.

What tooling does the OF-KA TUANA 56 use?

The OF-KA TUANA 56 runs a Ø70 x 50 x 20 mm pre-milling blade, a Ø100 x 3.2 mm end trimming blade, Ø49 x R3 mm top and bottom trimming cutters, a Ø42 x R3 mm trim cutter and a Ø80 mm - 8.5 mm grooving blade. Spares for the OF-KA TUANA 56 should be ordered to those exact dimensions.

How much does the OF-KA TUANA 56 cost?

The OF-KA TUANA 56 edge banding machine is supplied on quotation, not at a published list price. What sets the figure for an OF-KA TUANA 56 is the grooving and finishing unit configuration, the blade and spare tooling package, the chip extraction system and compressor required to run it, and delivery, rigging into a 6200 mm bay and the 12.68 kW three-phase connection. Send the panel thicknesses up to 54 mm and tape sizes to be run and a written quotation is prepared.

What is the lead time on an OF-KA TUANA 56?

The OF-KA TUANA 56 is built to order by Mizrak, so its current lead time is confirmed at quotation rather than published as a standing figure. Delivery timing for an OF-KA TUANA 56 depends on the factory schedule and the units specified, and it is confirmed in writing on the offer.

What does installing an OF-KA TUANA 56 involve?

Installing an OF-KA TUANA 56 needs a bay taking the 6200 mm machine plus panel infeed and outfeed, a level floor rated for 2000 kg, a 380-430 V three-phase supply for 12.68 kW, a 6-8 atm compressed air line and a connected chip extraction system, which is not supplied with the machine. Commissioning of the OF-KA TUANA 56 covers levelling, glue pot and grooving unit setting, sample panels and operator handover, and is arranged through the dealer.

What tooling and consumables should be budgeted separately from the OF-KA TUANA 56?

Separate from the OF-KA TUANA 56 machine price, budget for hot-melt glue for the 3.5 kg pot, edge tape from 0.40 mm to 3 mm, glue cleaning liquid and replacement tooling in the sizes the OF-KA TUANA 56 uses - Ø70 x 50 x 20 mm pre-milling, Ø100 x 3.2 mm end trimming, Ø49 x R3 and Ø42 x R3 trimming and Ø80 mm / 8.5 mm grooving blades. A chip extraction system and a compressor delivering 6-8 atm are separate purchases.

OF-KA TUANA 56 ფასი მოთხოვნით ფასის მოთხოვნა
