MIZRAK ROYAL 8 EXTRA Edge Banding Machine

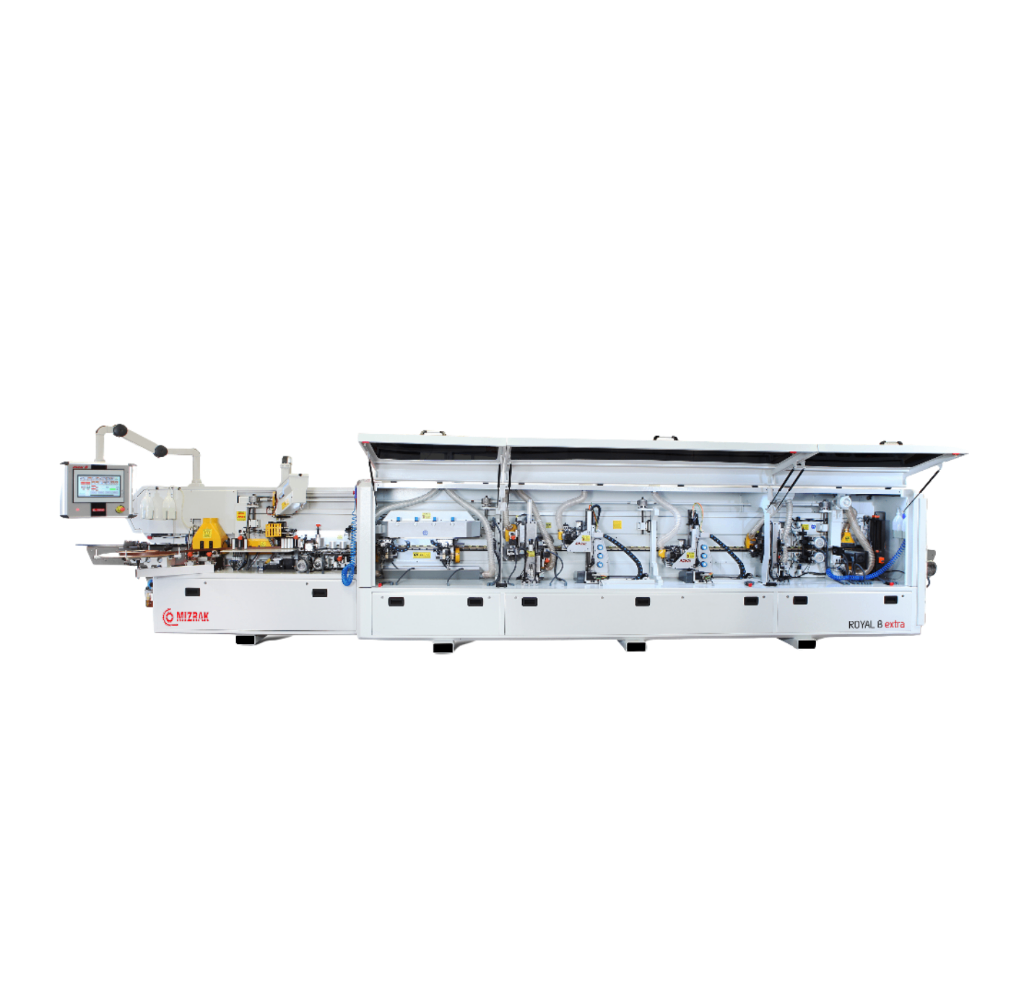

ROYAL 8 EXTRA — MIZRAK ROYAL 8 EXTRA Edge Banding Machine 1 / 4

PC control with a servo-driven pre-tracer is the highest control level Mizrak fits to an edge bander, and the ROYAL 8 EXTRA is the machine carrying that package: infrared pre-heating, a sensor-fed motorised glue pot and disc-tracer milling for 0-3 mm tape. Mizrak publishes no capacity table for the ROYAL 8 EXTRA.

  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

Price on the ROYAL 8 EXTRA is driven by the final unit configuration confirmed with Mizrak against the published list, the cutter and glue-pot spares package, whether a compressor and extraction plant are quoted with the machine, and delivery, installation and operator training in Georgia.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the ROYAL 8 EXTRA does

The ROYAL 8 EXTRA is a PC-controlled automatic edge banding machine for panel furniture production, equipped with a servo-controlled pre-tracer, jumping-type pre-milling and an automatic milling unit with disc tracer covering 0-3 mm edge tape. The ROYAL 8 EXTRA is the top of the Mizrak edge bander line-up in control terms: the operator sets the programme on a PC interface rather than on a bank of manual dials, and the servo pre-tracer positions the following units before the panel reaches them.

Glue system and panel preparation

Glue handling is where the ROYAL 8 EXTRA is specified most heavily. A photoelectric infrared pre-heater brings the panel edge up to temperature before gluing, a pre-glue cleaning fluid unit removes dust and release agents from the edge, and automatic sensor-controlled upper glue feeding keeps the motor-driven glue pot topped up without operator intervention. Together those three units are what separate a clean, invisible glue line from a visible one on high-gloss and matt panels.

Trimming and pressure

The ROYAL 8 EXTRA applies edge tape under a pneumatic top pressure unit, then cuts the overhang with an angle-adjustable front and rear cutting unit. Milling is handled by a 2 mm milling unit with disc tracer and an automatic disc-tracer milling unit covering 0-3 mm tape, so thin PVC and thick ABS edges can both be run without swapping the machine over.

What to confirm before ordering

Mizrak has not published a technical table for the ROYAL 8 EXTRA in its product database, so panel thickness range, conveyor speed, working height, glue pot capacity, total electrical power, machine length and weight should all be confirmed in writing before an order is placed. Any figure quoted for the ROYAL 8 EXTRA outside the feature list above should be treated as unverified. For a comparable machine with published specifications, the OF-KA TUANA 56 PREMIUM covers 8-60 mm panels at 14-18 m/min.

ძირითადი მახასიათებლები

  • PC-controlled operation with a servo-controlled pre-tracer positioning the downstream units - the top control level in the Mizrak edge bander range
  • Photoelectric infrared pre-heater warming the panel edge before glue is applied
  • Motor-driven glue pot with automatic sensor-controlled upper glue feeding
  • Pre-glue cleaning fluid unit removing dust and release agent from the edge
  • Pneumatic top pressure unit pressing the tape onto the panel
  • Angle-adjustable front and rear cutting unit for the tape overhang
  • 2 mm milling unit with disc tracer plus an automatic disc-tracer milling unit covering 0-3 mm tape

უპირატესობები

  • PC control with servo pre-tracing, the most advanced control level in the Mizrak edge bander range
  • Three separate glue-line preparation units: cleaning fluid, infrared pre-heating and sensor-controlled glue feeding
  • Disc-tracer milling covers 0-3 mm tape, so thin PVC and 2-3 mm ABS run on the same machine

გასათვალისწინებელი

  • No published technical specification table, so panel capacity, speed, power and dimensions must be requested before ordering
  • No corner rounding unit in the published unit list
  • Pneumatic units mean a compressor and an air line are required in addition to the machine

ხშირად დასმული კითხვები

What are the technical specifications of the ROYAL 8 EXTRA?
Mizrak does not publish a technical specification table for the ROYAL 8 EXTRA in its product database, so panel thickness, band thickness, conveyor speed, working height, connected power, machine dimensions and weight for the ROYAL 8 EXTRA must be requested from the supplier in writing. Only the unit list above is confirmed.
How is the ROYAL 8 EXTRA controlled?
The ROYAL 8 EXTRA is PC controlled, with a servo-controlled pre-tracer that positions the units ahead of the panel. That means job settings on the ROYAL 8 EXTRA are stored and recalled on screen rather than set by hand at each station, which shortens changeover between different tape thicknesses.
What edge tape thicknesses can the ROYAL 8 EXTRA run?
The ROYAL 8 EXTRA is fitted with a 2 mm milling unit with disc tracer and an automatic disc-tracer milling unit covering 0-3 mm, so tape from thin PVC up to 3 mm ABS is within the milling range. The exact minimum tape thickness for the ROYAL 8 EXTRA should be confirmed with the supplier, as it is not published.
Does the ROYAL 8 EXTRA need three-phase power and compressed air?
The ROYAL 8 EXTRA has a pneumatic top pressure unit, so a compressed air supply is required, and the machine is an industrial multi-motor edge bander of the type supplied for three-phase mains. Exact voltage, connected load and air pressure figures for the ROYAL 8 EXTRA are not published and must be confirmed before the electrical installation is planned.
Does the ROYAL 8 EXTRA round corners?
The published unit list for the ROYAL 8 EXTRA does not include a corner rounding unit, ending at the automatic disc-tracer milling unit. Buyers who need corner rounding should confirm whether it is available as an option on the ROYAL 8 EXTRA, or consider the OF-KA TUANA 56 PREMIUM, which has a two-motor corner rounding unit with a 42 mm maximum rounding distance.
How much space and what services does the ROYAL 8 EXTRA installation need?
Machine length, width, height and weight for the ROYAL 8 EXTRA are not published, so the installation bay cannot be planned from the catalogue alone. Request a dimensioned layout drawing for the ROYAL 8 EXTRA before committing floor space, and allow infeed and outfeed room for the longest panel the workshop runs.
How much does the ROYAL 8 EXTRA cost?
The ROYAL 8 EXTRA is supplied by quotation, not at a published list price. The price of a ROYAL 8 EXTRA moves with the final unit configuration confirmed with Mizrak, the tooling and spares package for the pre-milling and disc-tracer milling units, whether compressed air and chip extraction plant already exist on site or have to be quoted with the machine, and delivery, installation and operator training in Georgia. Because Mizrak publishes no technical table for the ROYAL 8 EXTRA, the quotation is also the document that carries the confirmed capacity figures.
What is the lead time on a ROYAL 8 EXTRA?
The ROYAL 8 EXTRA is built to order and the current lead time is confirmed at quotation. The build slot on a ROYAL 8 EXTRA is fixed once the unit configuration is agreed with Mizrak, so sending the panel sizes, tape thicknesses and shift pattern early shortens the time to a firm date.
What does commissioning a ROYAL 8 EXTRA involve?
Commissioning a ROYAL 8 EXTRA covers positioning the machine in a straight line with clear panel infeed and outfeed, levelling the conveyor bed so the tape presses evenly along the full panel edge, three-phase electrical connection by a qualified electrician, connection to a compressor for the pneumatic top pressure and milling units, and ducting the milling and trimming units to extraction. Glue pot and infrared pre-heat temperatures are then tuned to the tape and panel actually being run.
What tooling and consumables should be budgeted alongside a ROYAL 8 EXTRA?
Budget separately for the ROYAL 8 EXTRA: EVA or PUR glue granules, the pre-glue cleaning fluid the machine is designed to use, edge tape stock, pre-milling and disc-tracer milling cutters as wear items, and anti-adhesive spray and release agent for the trimming units. Add a compressor and air treatment plus a chip extraction unit if the workshop does not already have them, as neither is part of the ROYAL 8 EXTRA.
