MIZRAK TUANA 56 X PLUS Edge Banding Machine

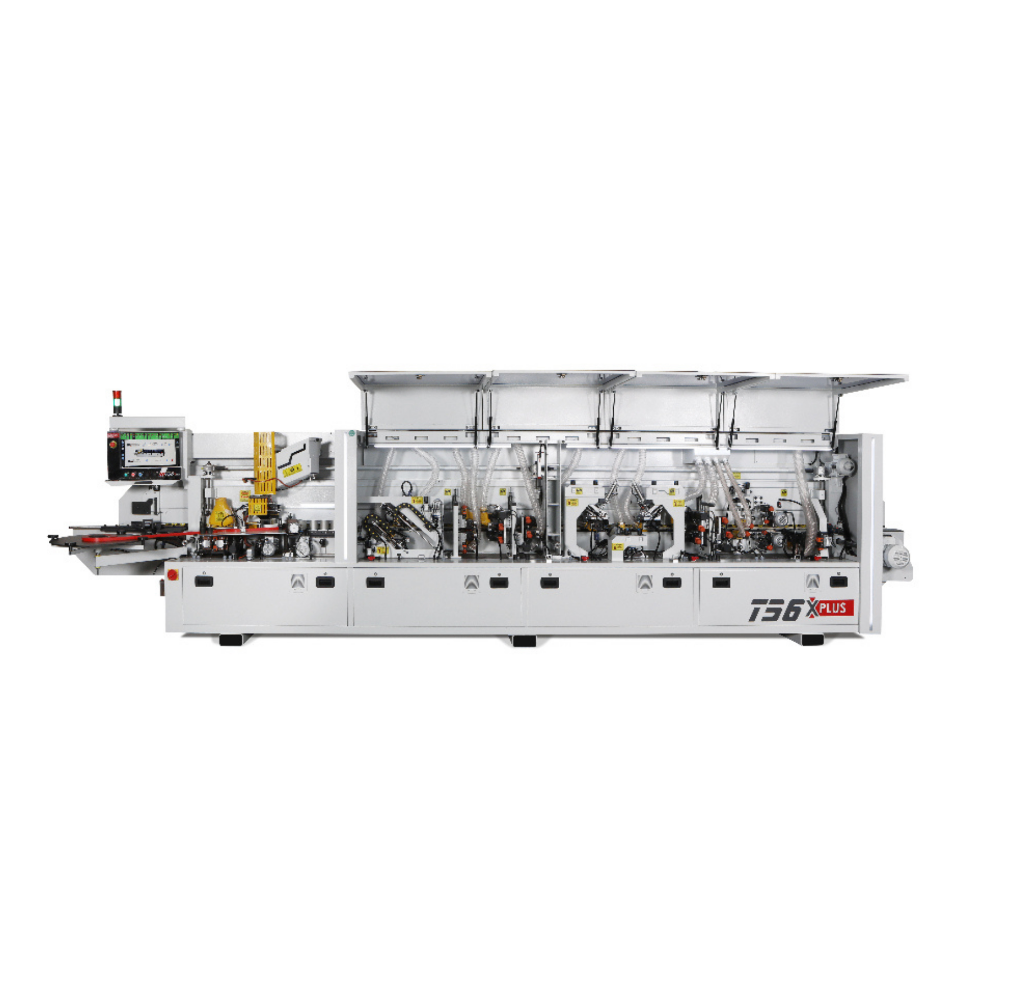

TUANA 56 X PLUS — MIZRAK TUANA 56 X PLUS Edge Banding Machine 1 / 4

PC control with a servo-driven pre-tracer is what sets the TUANA 56 X PLUS apart from the PLC-screen OF TUANA 56. Published units cover jumping pre-milling, infrared pre-heating, a sensor-fed glue pot, pneumatic top pressure, angled end cutting and 0-3 mm disc-tracer milling; Mizrak publishes no technical table for the TUANA 56 X PLUS.

  • ახალი
  • შეკვეთით
ფასი ფასი მოთხოვნით

The TUANA 56 X PLUS price is driven above all by the PC control and servo pre-tracer specification, then by the milling and cutting tooling package, the compressor and extraction needed to run it, and delivery and commissioning - and because no technical table is published, the exact machine configuration has to be fixed with the supplier before a firm figure can be given.

ფასის მოთხოვნა
+995 599 88 74 04
ირაკლი გაყიდვების მენეჯერი
  • კონფიგურაცია თქვენს ძაბვასა და ზომებზე
  • მიწოდება, მონტაჟი და გაშვება ადგილზე
  • ქარხნული გარანტია და სათადარიგო ნაწილები

What the TUANA 56 X PLUS does

The TUANA 56 X PLUS is a PC-controlled automatic edge banding machine specified with a servo-controlled pre-tracer, jumping-type pre-milling and an automatic disc-tracer milling unit covering 0-3 mm edge tape. The TUANA 56 X PLUS belongs to the TUANA 56 family of edge banders and is the PC-controlled variant, which means cutting and milling parameters are set from a screen programme rather than adjusted by hand at each unit.

Glue line preparation

The TUANA 56 X PLUS is equipped for a clean glue line rather than a fast one. A pre-glue cleaning fluid unit removes dust and release agent from the panel edge, a photoelectric infrared pre-heater warms the edge before the tape arrives, and automatic sensor-controlled upper glue feeding keeps the motor-driven glue pot at a working level without an operator watching it. Tape is pressed home by a pneumatic top pressure unit.

Trimming units

Overhang on the TUANA 56 X PLUS is removed by an angled front and rear cutting unit followed by the automatic milling unit with disc tracer, which follows the panel face and covers tape thicknesses from 0 to 3 mm. The disc tracer is what protects a lacquered or foil-faced panel surface from the cutter, and the 0-3 mm range means thin PVC tape and thick ABS edging can both be run on the same machine.

What to confirm before ordering

Mizrak has not published a technical specification table for the TUANA 56 X PLUS, so panel thickness range, conveyor speed, working height, glue pot capacity, connected electrical load, machine length and weight must be confirmed with the supplier in writing before ordering. No numeric capacity should be assumed for the TUANA 56 X PLUS from other TUANA 56 models. Buyers who need published figures now should compare the OF-KA TUANA 56, rated 8-54 mm at 14 m/min, or the OF-KA TUANA 56 PREMIUM at 8-60 mm.

ძირითადი მახასიათებლები

  • PC-controlled operation with a servo-controlled pre-tracer setting the units ahead of the panel
  • Jumping-type pre-milling unit cleaning the panel edge before glue
  • Photoelectric infrared pre-heater and pre-glue cleaning fluid unit for the glue line
  • Motor-driven glue pot with automatic sensor-controlled upper glue feeding
  • Pneumatic top pressure unit pressing tape onto the panel edge
  • Angled front and rear cutting unit for the tape overhang
  • Automatic milling unit with disc tracer covering 0-3 mm edge tape

უპირატესობები

  • PC control with a servo pre-tracer, a higher control level than the preview-unit TUANA 56 models
  • Full glue-line preparation: cleaning fluid, infrared pre-heating and sensor-controlled glue feeding
  • Disc-tracer milling covers the full 0-3 mm tape range on one machine

გასათვალისწინებელი

  • No published technical table, so thickness capacity, speed, power and footprint must be obtained from the supplier before ordering
  • No corner rounding, scraping, polishing or grooving unit in the published unit list
  • Pneumatic top pressure means a compressor is an additional required purchase

ხშირად დასმული კითხვები

What are the technical specifications of the TUANA 56 X PLUS?
Mizrak publishes no technical specification table for the TUANA 56 X PLUS, so workpiece thickness, band thickness, working speed, working height, glue pot capacity, total electric power, machine dimensions and weight must be requested from the supplier before ordering. Figures from other TUANA 56 models should not be applied to the TUANA 56 X PLUS.
How is the TUANA 56 X PLUS different from the OF-KA TUANA 56?
The TUANA 56 X PLUS is PC controlled with a servo pre-tracer, while the OF-KA TUANA 56 uses a preview unit with counter and has published figures of 8-54 mm workpiece thickness at 14 m/min. The TUANA 56 X PLUS unit list also stops at the automatic disc-tracer milling unit, with no scraping, polishing or grooving units published.
What edge tape can the TUANA 56 X PLUS run?
The TUANA 56 X PLUS has an automatic milling unit with disc tracer rated for 0-3 mm, so tape within that thickness range is milled by the machine. The minimum tape thickness and the supported tape materials for the TUANA 56 X PLUS are not published and should be confirmed with the supplier.
Does the TUANA 56 X PLUS need compressed air?
Yes. The TUANA 56 X PLUS has a pneumatic top pressure unit, so a compressor and an air line are required in addition to the machine. The exact working air pressure for the TUANA 56 X PLUS is not published and must be confirmed before installation.
Does the TUANA 56 X PLUS round corners or cut grooves?
The published unit list for the TUANA 56 X PLUS does not include a corner rounding unit, a scraping unit, a polishing unit or a grooving unit. Workshops that need those operations inline should look at the OF-KA TUANA 56, which has grooving, or the OF-KA TUANA 56 PREMIUM, which has two-motor corner rounding to 42 mm.
How much space does the TUANA 56 X PLUS installation need?
Machine length, width, height and weight for the TUANA 56 X PLUS are not published, so a dimensioned drawing must be requested before floor space is allocated. As a guide to the class of machine, comparable TUANA 56 edge banders run from 5900 mm to 7180 mm long, but no dimension should be assumed for the TUANA 56 X PLUS.
How much does the TUANA 56 X PLUS cost?
The TUANA 56 X PLUS is supplied on quotation rather than at a published price. The figure for a TUANA 56 X PLUS is driven by the PC control and servo pre-tracer specification, the milling and cutting tooling package, the compressor and chip extraction required, and delivery and commissioning in Georgia. Because Mizrak publishes no technical table for the TUANA 56 X PLUS, the configuration is confirmed with the supplier in writing as part of preparing the quotation.
Can the specifications and lead time for a TUANA 56 X PLUS be confirmed before ordering?
Yes. Mizrak publishes no technical specification table for the TUANA 56 X PLUS, so panel thickness capacity, working speed, total power, dimensions and weight are requested from the supplier in writing and supplied with the quotation. The TUANA 56 X PLUS is built to order and the current lead time is confirmed at quotation at the same time.
What is needed on site to commission a TUANA 56 X PLUS?
Commissioning a TUANA 56 X PLUS requires a three-phase connection, a compressed air supply for its pneumatic top pressure unit, an extraction connection and a level floor. The bay length and floor loading for a TUANA 56 X PLUS cannot be taken from published data, as Mizrak lists no dimensions or weight, so the installation drawing is obtained from the supplier before the floor is prepared. Installation and PC control training are arranged through the dealer.
What tooling and consumables should be budgeted alongside a TUANA 56 X PLUS?
Alongside the TUANA 56 X PLUS machine price, budget for hot-melt glue, edge tape across the 0-3 mm range the disc-tracer milling unit covers, glue cleaning fluid, and replacement pre-milling, end cutting and milling tooling. A compressor for the pneumatic top pressure unit and a chip extraction system are separate purchases. Exact blade sizes for the TUANA 56 X PLUS are not published and are confirmed with the supplier.
