OF TUANA 56 — MIZRAK OF TUANA 56 Edge Banding Machine 1 / 4

MIZRAK

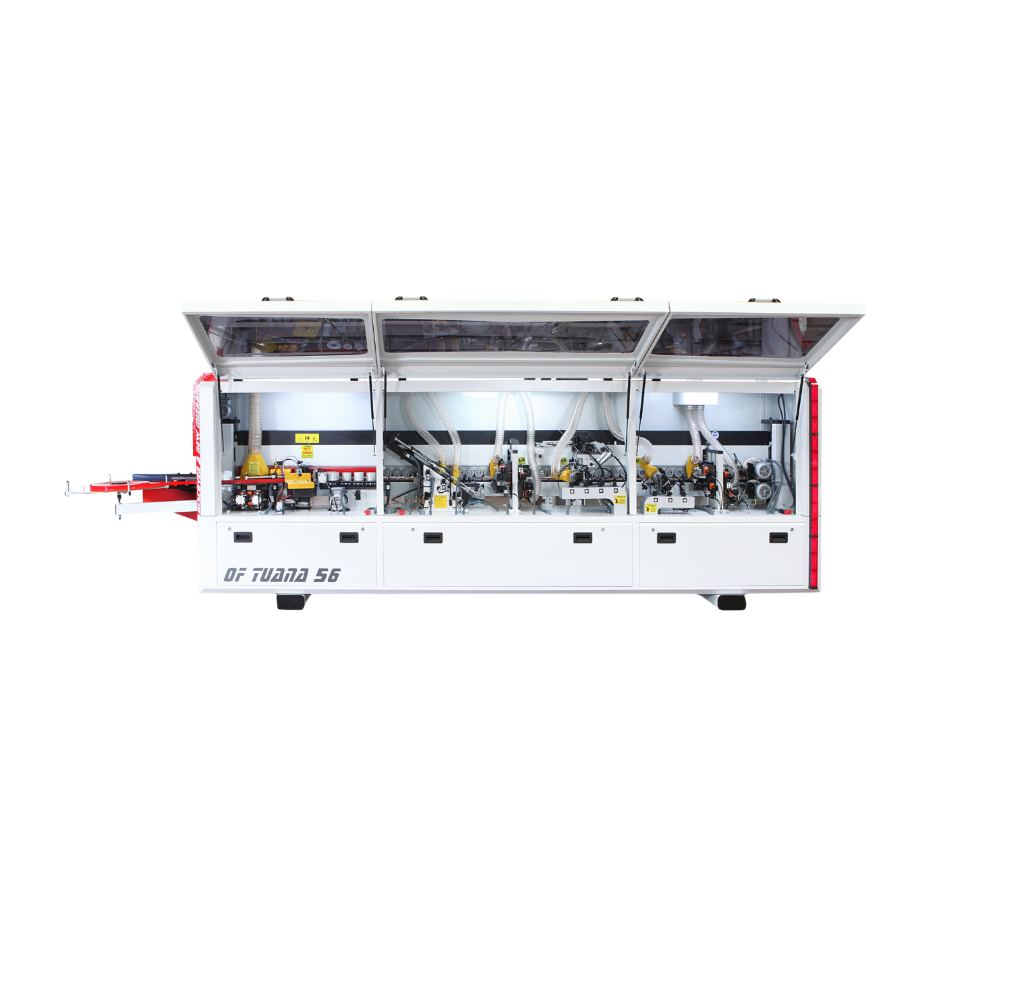

MIZRAK OF TUANA 56 Edge Banding Machine

OF TUANA 56

The OF TUANA 56 is the lightest electrical installation in the TUANA 56 family at 10.08 kW, against 12.68 kW for the OF-KA TUANA 56, because no grooving unit is fitted. PLC screen control, pre-milling, a 54 mm trim unit, scraping and polishing take 8 to 54 mm panels through the OF TUANA 56 at 14 m/min.

ფასი მოთხოვნით

The OF TUANA 56 price is driven by the PLC control and finishing unit specification, the blade and spare tooling package, the chip extraction system and compressor needed to run it, and delivery, rigging a 2180 kg machine into a 5900 mm bay and the 10.08 kW electrical connection.

ფასის მოთხოვნა

What the OF TUANA 56 does

The OF TUANA 56 is an automatic edge banding machine for panels 8 to 54 mm thick, applying 0.40-3 mm edge tape at 14 m/min under PLC screen control. The OF TUANA 56 covers the core edging sequence in a single pass: double-jumping pre-milling, gluing with shear and pressing units, pre-heating, front and end cutting, automatic milling, a new 54 mm trim unit, automatic scraping, glue cleaning fluid and polishing. Minimum workpiece width is 100 mm.

Control and operation

Operation of the OF TUANA 56 is built around a PLC screen control unit and a preview unit with counter, so the operator sets the job on a panel and the machine reports piece counts back. That combination is aimed at a workshop with one or two edge banding operators rather than a shift-based production line, and it keeps the OF TUANA 56 straightforward to teach to a new employee.

How the OF TUANA 56 compares

The OF TUANA 56 is the entry point to the TUANA 56 family and the honest choice for square-edge carcase work. Panel capacity, 8-54 mm, and speed, 14 m/min, match the OF-KA TUANA 56, but the OF TUANA 56 has no grooving unit and no hot air blowing system, which is why its connected load is 10.08 kW against 12.68 kW and its line is 5900 mm long instead of 6200 mm. A workshop that needs back-panel grooves cut inline, or that bands rounded corners, should step up to the OF-KA TUANA 56 or the OF-KA TUANA 56 PREMIUM instead of adding units later.

Installation requirements

The OF TUANA 56 measures 5900 x 800 x 1650 mm and weighs 2180 kg, with a working height of 875 mm and a 3.5 kg glue pot. The machine needs a 380-430 V AC 50-60 Hz three-phase supply, 10.08 kW of connected electrical power and compressed air at 6-8 atm. Sound level is rated at Lwa 82.9 dB, and trimming uses Ø49 x R3 mm top and bottom blades with a Ø69 x R3 mm trim blade.

ძირითადი მახასიათებლები

  • Workpiece thickness 8-54 mm at 14 m/min with a 100 mm minimum workpiece width
  • PLC screen control unit with a preview unit and piece counter
  • 1.5 kW double-jumping pre-milling unit at 12,000 rpm with a Ø70 mm blade
  • 3.5 kg glue pot with pre-heater, shear and pressing units and glue cleaning liquid
  • New 54 mm trim unit with Ø49 x R3 mm top-bottom blades and a Ø69 x R3 mm trim blade
  • 0.25 kW polishing unit at 2840 rpm and an automatic scraping unit
  • 2.2 kW chain conveyor motor and 10.08 kW total electric power, the lowest in the TUANA 56 family
  • 5900 x 800 x 1650 mm machine size, 875 mm working height, 2180 kg weight

ტექნიკური მახასიათებლები

Nominal Current
380–430 V AC, 50–60 Hz
Sound Level
Lwa 82.9 dB
Band Thickness
0.40 mm – 3 mm
Workpiece Thickness
8 – 54 mm
Minimum Workpiece Width
100 mm
Working Speed
14 m/min
Working Height
875 mm
Glue Pot Capacity (Max.)
3.5 kg
Air Pressure
6 – 8 atm
Pre-Milling Saw Blade Diameter
Ø70 mm
Rough Trimming Cutter
Ø49 x 20 Z4
End Trimming Saw Blade Diameter
Ø100 x 3.2 mm
Top-Bottom Trimming Blade Diameter
Ø49 x R3 mm
Trim Trimming Blade Diameter
Ø69 x R3 mm
Max. Corner Rounding Distance
42 mm
Pre-Milling Motor Power / Speed
1.5 kW / 12,000 rpm
End Trimming Motor Power / Speed
0.37 kW / 12,000 rpm
Top-Bottom Trimming Motor Power / Speed
0.75 kW / 12,000 rpm
Trim Trimming Motor Power / Speed
0.55 kW / 12,000 rpm
Polishing Motor Power / Speed
0.25 kW / 2840 rpm
Chain Conveyor Motor Power / Speed
2.2 kW / 15 rpm
Total Electric Power
10.08 kW
Machine Length
5900 mm
Machine Width
800 mm
Machine Height
1650 mm
Machine Weight
2180 kg

უპირატესობები

  • Lowest connected load in the TUANA 56 family at 10.08 kW, easiest of the three to install electrically
  • Shortest line at 5900 mm while keeping full 8-54 mm panel capacity
  • PLC screen control with a preview unit and piece counter for job tracking

გასათვალისწინებელი

  • No grooving unit and no hot air blowing system, so back-panel grooves need a second machine
  • Fixed 14 m/min conveyor speed with no variable feed option
  • Heavier than the OF-KA TUANA 56 at 2180 kg despite being 300 mm shorter, and still needs three-phase power, a compressor and separate extraction

ხშირად დასმული კითხვები

What panels can the OF TUANA 56 band?
The OF TUANA 56 bands workpieces from 8 to 54 mm thick with a minimum workpiece width of 100 mm, using edge tape from 0.40 to 3 mm. For panels over 54 mm the OF-KA TUANA 56 PREMIUM is the model to specify, as it goes to 60 mm.
What power supply does the OF TUANA 56 need?
The OF TUANA 56 runs on a 380-430 V AC 50-60 Hz three-phase supply with a total electric power of 10.08 kW, the lowest connected load in the TUANA 56 family, plus compressed air at 6-8 atm. Single-phase operation is not offered for the OF TUANA 56.
Does the OF TUANA 56 have a grooving unit?
No. The OF TUANA 56 has no grooving unit and no hot air blowing system, which is the main difference from the OF-KA TUANA 56. Workshops that need the back-panel groove cut inline should specify the OF-KA TUANA 56, which has a 2.6 kW grooving motor.
How much space does the OF TUANA 56 need?
The OF TUANA 56 is 5900 mm long, 800 mm wide and 1650 mm high, weighs 2180 kg and works at an 875 mm height. Add infeed and outfeed clearance for the longest panel, so plan a clear run of roughly 10 metres for the OF TUANA 56.
What tooling and consumables does the OF TUANA 56 need?
The OF TUANA 56 uses a Ø70 mm pre-milling blade, a Ø49 x 20 Z4 rough trimming cutter, a Ø100 x 3.2 mm end trimming blade, Ø49 x R3 mm top-bottom trimming cutters and a Ø69 x R3 mm trim cutter, plus EVA or PUR granule glue for the 3.5 kg pot and edge tape from 0.40 to 3 mm. Glue type for the OF TUANA 56 should be confirmed with the supplier.
What is not included with the OF TUANA 56?
The OF TUANA 56 specification does not list a dust extraction unit, a compressor, glue or edge tape. The workshop must connect the OF TUANA 56 to its own chip extraction and supply compressed air at 6-8 atm.
How much does the OF TUANA 56 cost?
The OF TUANA 56 edge banding machine is supplied on quotation rather than at a published list price. The quoted figure for an OF TUANA 56 depends on the PLC control and finishing unit specification, the blade and spare tooling package, the chip extraction system and compressor required, and delivery, rigging and the 10.08 kW three-phase connection. Because the OF TUANA 56 has the lowest connected load in the TUANA 56 family, the electrical installation cost is typically lower than for the OF-KA TUANA 56 or the PREMIUM.
What is the lead time for an OF TUANA 56?
The OF TUANA 56 is built to order by Mizrak, so the current lead time is confirmed at quotation rather than published. Delivery timing for an OF TUANA 56 follows the factory schedule and the units specified at the time of order, and is confirmed in writing on the offer.
What is needed to install and commission an OF TUANA 56?
An OF TUANA 56 needs a bay taking the 5900 mm machine plus panel infeed and outfeed, a level floor rated for 2180 kg, a 380-430 V three-phase supply for 10.08 kW, a 6-8 atm compressed air line and a connected chip extraction system, which is not supplied with the machine. Commissioning of the OF TUANA 56 covers levelling, PLC and unit setting, glue pot and trim adjustment, sample panels and operator handover, and is arranged through the dealer.
What tooling and consumables should be budgeted alongside the OF TUANA 56?
Alongside the OF TUANA 56 machine price, budget for hot-melt glue for the 3.5 kg pot, edge tape from 0.40 mm to 3 mm, glue cleaning liquid and replacement tooling in the OF TUANA 56 sizes - Ø70 mm pre-milling, Ø49 x 20 Z4 rough trimming, Ø100 x 3.2 mm end trimming, Ø49 x R3 and Ø69 x R3 trimming blades - plus scraper knives. A chip extraction system and a compressor delivering 6-8 atm are separate purchases, and a second machine or router is needed for back-panel grooving, which the OF TUANA 56 does not do.
