Furniture production machinery covers the machines that turn full sheets of chipboard, MDF, plywood and faced board into finished cabinet parts: sizing, edge finishing, drilling and shaped machining. This category holds 77 machines from HOLZMANN (Austria), MIZRAK and NETMAK (Turkey), grouped as sliding table panel saws (29), edge banding machines (28), CNC routers (10), boring machines (7) and beam saws (3). The range starts at a one-operator joinery bench and reaches a factory line. Every machine here is supplied by quotation, configured to your voltage, panel sizes and tooling before pricing.
ნაპოვნი დანადგარები
-

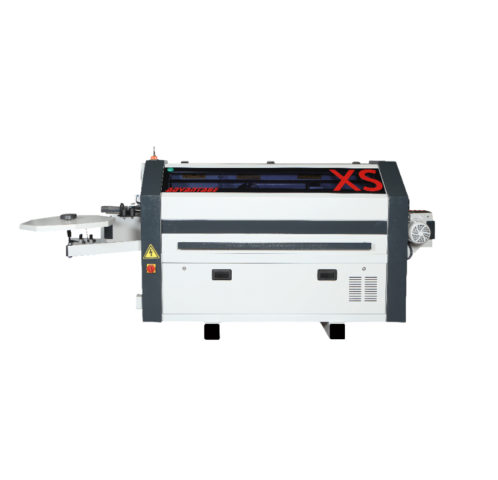

წიბოს დასაკრავი დანადგარიMIZRAK ADVANTAGE X SMALL Edge Banding Machine
- დეტალის სისქე
- 8 - 42 mm
- სამუშაო სიჩქარე
- 10 m/min
- ჰაერის წნევა
- 6 - 8 atm
ფასი მოთხოვნით -

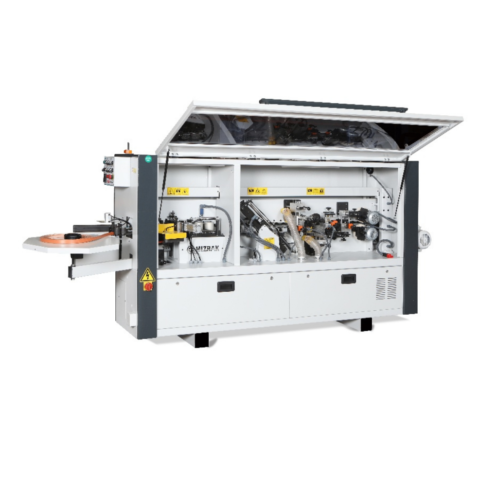

წიბოს დასაკრავი დანადგარიMIZRAK ADVANTAGE-3 Edge Banding Machine
- დეტალის სისქე
- 8 - 42 mm
- სამუშაო სიჩქარე
- 10 m/min
- ჰაერის წნევა
- 6 - 8 atm
ფასი მოთხოვნით -
წიბოს დასაკრავი დანადგარიMIZRAK ADVANTAGE-4 Edge Banding Machine
- დეტალის სისქე
- 8 - 42 mm
- სამუშაო სიჩქარე
- 10 m/min
- ჰაერის წნევა
- 6 - 8 atm
ფასი მოთხოვნით -
წიბოს დასაკრავი დანადგარიMIZRAK ADVANTAGE-5 Edge Banding Machine
- დეტალის სისქე
- 8 - 42 mm
- სამუშაო სიჩქარე
- 10 m/min
- ჰაერის წნევა
- 6 - 8 atm
ფასი მოთხოვნით -
წიბოს დასაკრავი დანადგარიMIZRAK ADVANTAGE-6 Edge Banding Machine
- დეტალის სისქე
- 8 - 42 mm
- სამუშაო სიჩქარე
- 10 m/min
- ჰაერის წნევა
- 6 - 8 atm
ფასი მოთხოვნით -

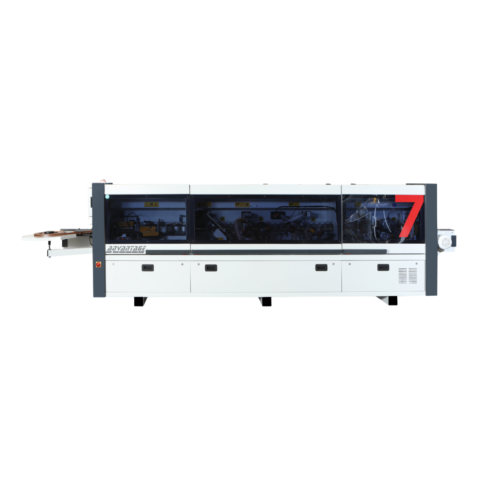

წიბოს დასაკრავი დანადგარიMIZRAK ADVANTAGE-7 Edge Banding Machine
- დეტალის სისქე
- 8 – 42 mm
- სამუშაო სიჩქარე
- 10 m/min
- ჰაერის წნევა
- 6 – 8 atm
ფასი მოთხოვნით -
საბალკე (ბიმ) ხერხიMIZRAK DRAGON PE 383 Beam Saw
- სამუშაო სიგანე
- 3800 mm
- ძრავის სიმძლავრე
- 7.5 kW
- ძაბვა
- 400V
ფასი მოთხოვნით -
საბალკე (ბიმ) ხერხიMIZRAK DRAGON PE 420-4 Beam Saw
- სამუშაო სიგანე
- 4200 mm
- ძრავის სიმძლავრე
- 15 kW
- ძაბვა
- 400V
ფასი მოთხოვნით -
საბალკე (ბიმ) ხერხიMIZRAK DRAGON PE 420-5 Beam Saw
- ძრავის სიმძლავრე
- 15 kW
- ძაბვა
- 400V
- ჭრის სიმაღლე
- 90 mm
ფასი მოთხოვნით -
CNC რუტერიMizrak LINA 2128 PLUS X CNC Nesting Router
- სამუშაო სიჩქარე
- 120 m/min
- შპინდელი
- 13 kW
ფასი მოთხოვნით -
CNC რუტერიMizrak LINA 2136 CNC Nesting Router
- სამუშაო სიჩქარე
- 30 m/min
- შპინდელი
- 7.5–9 kW HSD
ფასი მოთხოვნით -
CNC რუტერიMizrak LINA 2136 ED CNC Nesting Router
- სამუშაო სიჩქარე
- 30 m/min
- შპინდელი
- 7.5–9 kW HSD
ფასი მოთხოვნით -
CNC რუტერიMizrak LINA 2136 EVO CNC Nesting Router
- სამუშაო სიჩქარე
- 20 m/min
- შპინდელი
- 7.5–9 kW HSD
ფასი მოთხოვნით -
CNC რუტერიMizrak LINA 2136 LINE Automatic CNC Nesting Cell
- ძრავის სიმძლავრე
- 13 kW
- სამუშაო არე
- 2100 x 3660 mm
- შპინდელი
- 11–13 kW
ფასი მოთხოვნით -
CNC რუტერიMizrak LINA 2136 PLUS X CNC Nesting Router
- შპინდელი
- 11–13 kW HSD
- სამუშაო სიჩქარე
- 120 m/min
ფასი მოთხოვნით -
ფორმატ-საჭრელი ხერხი (ჰორიზონტალური)Mizrak MZK 1500 PRESTIJ Sliding Table Panel Saw
- ძრავის სიმძლავრე
- 4 kW
- მაგიდის სიგრძე
- 1500 mm
- წონა
- 685 kg
ფასი მოთხოვნით -
ფორმატ-საჭრელი ხერხი (ჰორიზონტალური)Mizrak MZK 2200 PRESTIJ Sliding Table Panel Saw
- ძრავის სიმძლავრე
- 4 kW
- მაგიდის სიგრძე
- 2200 mm
- წონა
- 625 kg
ფასი მოთხოვნით -
ფორმატ-საჭრელი ხერხი (ჰორიზონტალური)MIZRAK MZK 2800 Diamond Sliding Table Panel Saw
- ძრავის სიმძლავრე
- 4 kW
- მაგიდის სიგრძე
- 2800 mm
- მაგიდის ზომა
- 550 x 910 mm
ფასი მოთხოვნით -
ფორმატ-საჭრელი ხერხი (ჰორიზონტალური)Mizrak MZK 2800 PRESTIJ Sliding Table Panel Saw
- ძრავის სიმძლავრე
- 4 kW
- მაგიდის სიგრძე
- 2800 mm
- წონა
- 646 kg
ფასი მოთხოვნით -
ფორმატ-საჭრელი ხერხი (ჰორიზონტალური)MIZRAK MZK 3200 Concord Sliding Table Panel Saw
- ძრავის სიმძლავრე
- 5.5 kW
- მაგიდის სიგრძე
- 3200 mm
- მაგიდის ზომა
- 550 x 910 mm
ფასი მოთხოვნით -
ფორმატ-საჭრელი ხერხი (ჰორიზონტალური)MIZRAK MZK 3200 Diamond S Sliding Table Panel Saw
- ძრავის სიმძლავრე
- 4 kW
- მაგიდის ზომა
- 550 x 910 mm
- წონა
- 820 kg
ფასი მოთხოვნით -
ფორმატ-საჭრელი ხერხი (ჰორიზონტალური)MIZRAK MZK 3200 Diamond Sliding Table Panel Saw
- ძრავის სიმძლავრე
- 4 kW
- მაგიდის სიგრძე
- 3200 mm
- მაგიდის ზომა
- 550 x 910 mm
ფასი მოთხოვნით -
ფორმატ-საჭრელი ხერხი (ჰორიზონტალური)MIZRAK MZK 3200 Diamond SX Sliding Table Panel Saw
- ძრავის სიმძლავრე
- 4 kW
- მაგიდის სიგრძე
- 3200 mm
- მაგიდის ზომა
- 550 x 910 mm
ფასი მოთხოვნით -
ფორმატ-საჭრელი ხერხი (ჰორიზონტალური)Mizrak MZK 3200 PRESTIJ Sliding Table Panel Saw
- ძრავის სიმძლავრე
- 4 kW
- მაგიდის სიგრძე
- 3200 mm
- წონა
- 700 - 780 - 790 kg
ფასი მოთხოვნით
How to choose furniture production machinery
Choose furniture production machinery in the order a panel actually travels through the shop: size it, edge it, drill it, then shape it. A cabinet workshop that buys the panel saw first and the edge bander second rarely regrets that order, because the saw sets the squareness and edge quality of every part that follows, while the edge bander only has to keep up with what the saw produces.
Sizing: sliding table panel saw or beam saw
A sliding table panel saw is the right sizing machine for almost every Georgian furniture workshop, because a panel saw is operator-paced: one person loads the sheet onto the carriage and controls each cut. A beam saw belongs in a shop where sheet volume, not operator skill, has become the bottleneck, because a beam saw clamps a stack of panels and cuts programmed strips through the book. With 29 panel saws and 3 beam saws in this category, the panel saw is the normal entry point and the beam saw is the step a growing factory takes later.
Edge finishing
Edge banding machines decide how a finished cabinet is judged, since the edge is what a customer touches. The 28 edge banders here run from compact machines that glue, trim and scrape thin tape for a small joinery, up to automatic machines that add pre-milling, corner rounding and buffing units. Match the edge bander to the tape you sell most: thin PVC needs far less machine than thick 2 mm ABS on solid-colour fronts.
Drilling and shaped work
Boring machines are the cheapest way to get repeatable hinge cup holes and shelf-pin rows, and 7 boring machines are listed here for exactly that job. A CNC router earns its place when parts stop being rectangular: nested cutting, curved fronts, pocketing and engraving are CNC router work, and 10 CNC routers cover that range. A workshop doing straight carcase furniture usually needs the boring machine; a workshop selling shaped or one-off designs needs the router.
Power supply, floor space and extraction
Three-phase 400 V is the realistic assumption for furniture production machinery, and any shop planning a panel saw, edge bander, beam saw or CNC router should confirm the incoming supply and cable rating with an electrician before ordering. Single-phase machines exist only at the smallest end of the range. Floor space is dictated by movement, not by the machine footprint: a sliding table panel saw needs its full carriage stroke clear at both ends plus sheet width to the left of the blade, and an edge banding machine needs infeed and outfeed room for the longest panel you band. Every machine in this category also needs dust or chip extraction sized to the number of open ports, and CNC routers additionally need vacuum clamping for the table.
What the quoted price depends on
The price of furniture production machinery is driven by configuration rather than by badge. On panel saws the drivers are sliding table length, main motor power, the scoring unit and whether fences are manual or digitally positioned. On edge banders the driver is the number of working stations. On CNC routers it is table size, spindle power and whether an automatic tool changer is fitted. Add the tooling package to every calculation, because saw blades, scoring sets, cutters, drill bits, glue and spare tape guides are budgeted separately from the machine, as are delivery to your site and commissioning. Send the part sizes and sheet volumes you work with and we will quote a configuration against them.
როგორ ავირჩიოთ
-
You cut sheet goods to size
Sliding table panel saws (29 machines) are the starting point; sliding stroke should exceed the longest cut you make in one pass
-
Sheet throughput has become the bottleneck
Move from a panel saw to a beam saw (3 machines), which cuts a clamped stack to a programmed cutting pattern
-
Raw panel edges need banding
Edge banding machines (28) - choose by tape thickness you actually sell and by how many stations the machine carries
-
Repeatable hinge and shelf-pin holes
Boring machines (7) do the job faster and squarer than a hand jig and cost far less than a CNC router
-
Curved, nested or engraved parts
CNC routers (10) - decide by table size against your standard sheet and by whether a tool changer is needed
-
Shop under roughly 60 square metres
Choose a shorter sliding table and a compact edge bander; carriage stroke and panel infeed, not machine footprint, set the space you need
-
Single-phase supply only
Restricts you to the smallest machines in the category; confirm a three-phase 400 V supply before specifying a panel saw, edge bander or CNC router
-
Solid timber, not sheet material
Furniture production machinery is not the right category - use planers, thicknessers, spindle moulders and sanders in woodworking machinery
